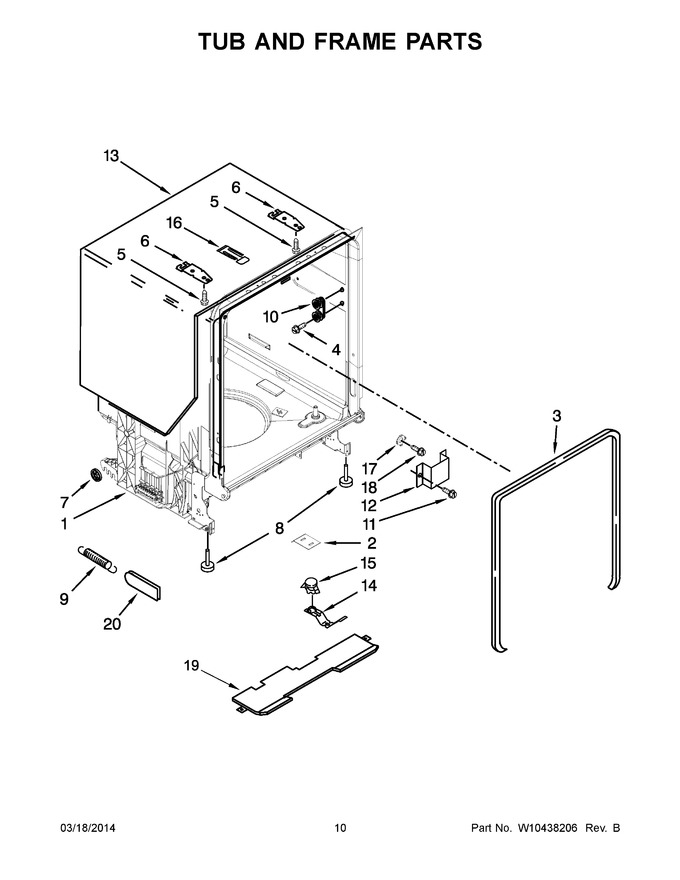

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11513976 | Tub Assembly (also Includes Heater Assembly) (Replaces: W10350149) |
|
$ 586.37 | |||||
| 2 | W10321574 | Shield, Thermostat (Replaces: W10339699) |
|
$ 25.83 | |||||
| 3 | W10542314 | Seal, Tub (Replaces: W10284090) |
|
Immediately | $ 97.26 | ||||
| 4 | W10817436 | Screw (Replaces: W10341745) |
|
Immediately | $ 8.14 | ||||
| 5 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 7 | WP8269831 | Wheel, Leg (Replaces: 8269831) |
|
$ 7.90 | |||||
| 8 | 8193716 | Leg, Leveling (Replaces: 8524584) |
|
Immediately | $ 88.96 | ||||
| 9 | WPW10337934 | Spring, Door (Replaces: 8524473) |
|
Immediately | $ 36.34 | ||||
| 10 | WPW10505751 | Wheel & Mount Assembly (Replaces: W10195374) |
|
$ 123.19 | |||||
| 11 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 12 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 13 | W10877094 | Shield, Tub Sound (Replaces: 8573239) |
|
$ 233.63 | |||||
| 14 | W10539489 | Clip, Thermostat (Replaces: 3378595) |
|
$ 20.14 | |||||
| 15 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 16 | W10542314 | Strike, Latch (Replaces: W10350162) |
|
Immediately | $ 97.26 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 11.81 | |||||
| 18 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 8.24 | |||||
| 19 | WPW10746770 | Sound Insulation, Bottom (Replaces: W10195368) |
|
$ 44.84 | |||||
| 20 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 49.35 |
