SELECT A DIAGRAM

01 - Cover Sheet

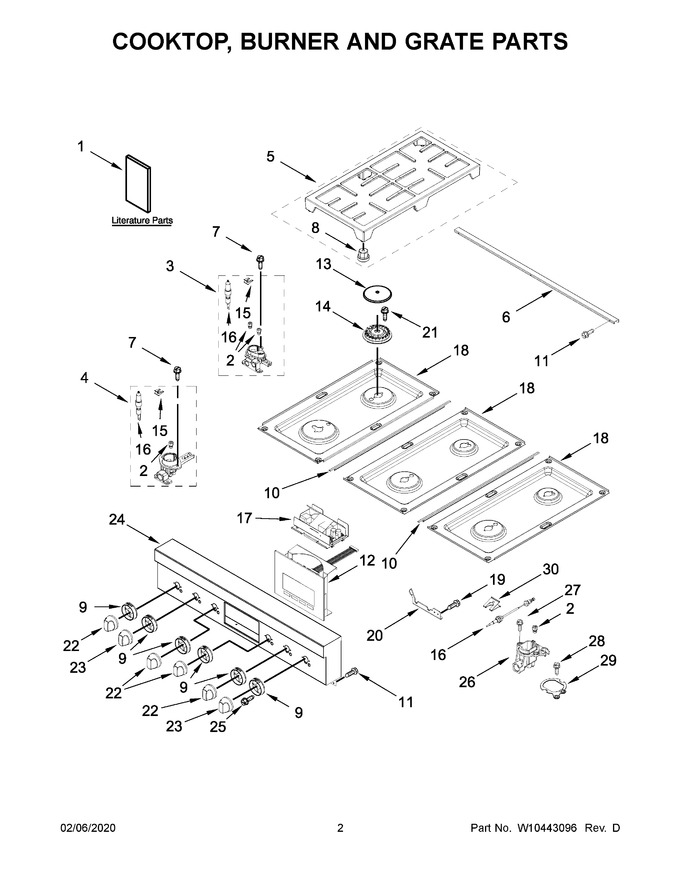

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403301		Sheet, Tech (english)		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front & Right Front, High)				$ 90.69
3	WPW10364555		Assembly, Orifice Holder (left Front & Right Front)   (Replaces: W10364555)				$ 113.42
4	WPW10364556		Assembly, Orifice Holder (left Rear, Right Rear & Center Front)   (Replaces: W10364556)				$ 102.39
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 218.28
6	W10269217		Trim, Island				$ 308.49
7	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
8	W11314395		Bumper, Grate   (Replaces: W11306485)				$ 6.95
9	W10276494		Bezel				$ 80.42
10	W10271524		Black				$ 212.34
11	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
12	W10464535		Assembly, Keypad				$ 1,125.19
13	WPW10256034		Cap, Burner (black) (left Front & Right Front)   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front & Right Front)   (Replaces: W10879806)			Immediately	$ 89.01
15	W10256046		Clip, Spring (electrode)				$ 11.56
16	W10833887		Electrode, Burner (all But Center Rear)   (Replaces: W10256047)			Immediately	$ 31.77
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 311.25
18	W10352969		Cooktop (black (left))				$ 335.75
19	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
20	W10130760		Bracket, Moving Console (left)				$ 75.94
21	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
22	W10145454		Knob, Single (stainless)				$ 46.94
23	W10145568		Knob, Dual (stainless)				$ 52.92
24	W11444940		Panel, Control   (Replaces: W10789953)				$ 832.56
25	WP74003976		Screw   (Replaces: W10906658)				$ 7.55
26	W10282659		Assembly, Orifice Holder (center Rear)				$ 40.50
27	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
28	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
29	8286930		Gasket, Orifice				$ 95.73
30	8286863		Spring, Electrode (center Rear)				$ 76.92
13A	WPW10256032		Cap, Burner (black) (left Rear, Right Rear & Center Front)   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black) (center Rear)   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear, Right Rear & Center Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10282515		Spreader, Flame (center Rear)   (Replaces: W10282515)			Immediately	$ 149.87
16A	W10854967		Electrode, Burner (center Rear)   (Replaces: 8286725)			Immediately	$ 48.38
18A	W10352966		Cooktop (black (center))				$ 320.43
18B	W10352967		Cooktop (black (right))				$ 337.26
1A	W10403302		Sheet, Tech (french)		Appelez-nous	-
1B	W10837387		Guide, Use & Care		Appelez-nous	-
1C	W10821685		Instructions, Installation		Appelez-nous	-
20A	W10130759		Bracket, Moving Console (right)				$ 75.94
2A	W10819958		Orifice (1.2k) (left Front & Right Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear, Right Rear & Center Front)   (Replaces: W10364221)				$ 90.69
2C	W10791075		Orifice (5k) (center Rear)   (Replaces: W10282663)				$ 103.68
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	9757778		Bushing, Snap Split				$ 97.63
NI	4450800		Screw, Grounding				$ 13.47
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	W10830809		Harness, Main				$ 382.29
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W10283996		Assembly, Injector		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10344051		Harness, Communication				$ 133.32
NI	W10507834		Harness, Ignition				$ 181.90
NI	W10116142		Harness, Convection Fan				$ 80.09
NI	W10399620		Harness, Switch				$ 127.82
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11321066		Cord, Power   (Replaces: W10624586)				$ 118.94

    View Diagram in Separate Window       Print Part List
