New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10145766 Kickplate Special Order $ 95.92

2 W10115869 Shaft, Long In-Stock Immediately $ 109.36

3 W10115793 Shaft, Short Special Order $ 75.83

4 489504 E-ring Special Order $ 7.40

5 WP3400968 Nut   (Replaces: 3400968) In-Stock Immediately $ 8.36

6 W10145379 Duct, Bottom Appelez-nous -
7 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

8 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.95

9 W10249333 Base, Leveling Leg Special Order $ 292.22

10 W10859931 Leveler   (Replaces: 9760860) Special Order $ 119.11

11 WP4449743 Screw   (Replaces: 4449743) Special Order $ 7.55

12 W10145376 Support, Channel Appelez-nous -
13 WPW10138054 Assembly, Roller   (Replaces: W10138054) Special Order $ 45.34

14 W10269206 Chassis, Side (left) Special Order $ 235.28

15 WPW10250465 Panel, Side (left)   (Replaces: W10250465) Special Order $ 448.67

14A W10269205 Chassis, Side (right) Special Order $ 235.53

15A W11333303 Panel, Side (right)   (Replaces: W10250464) Special Order $ 421.41


    View Diagram in Separate Window     Print Icon   Print Part List

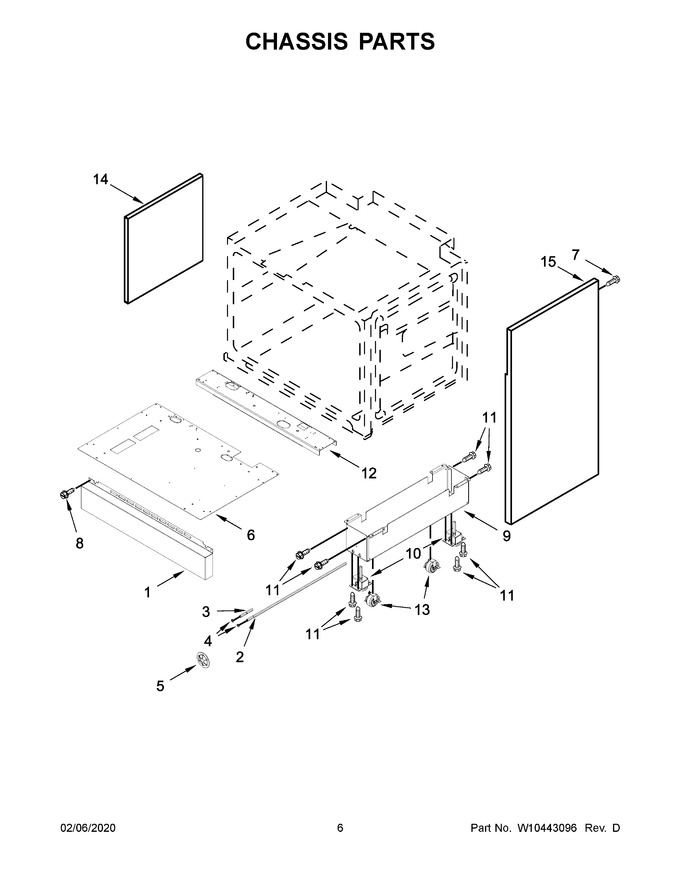

Diagram for JDRP436WP02
