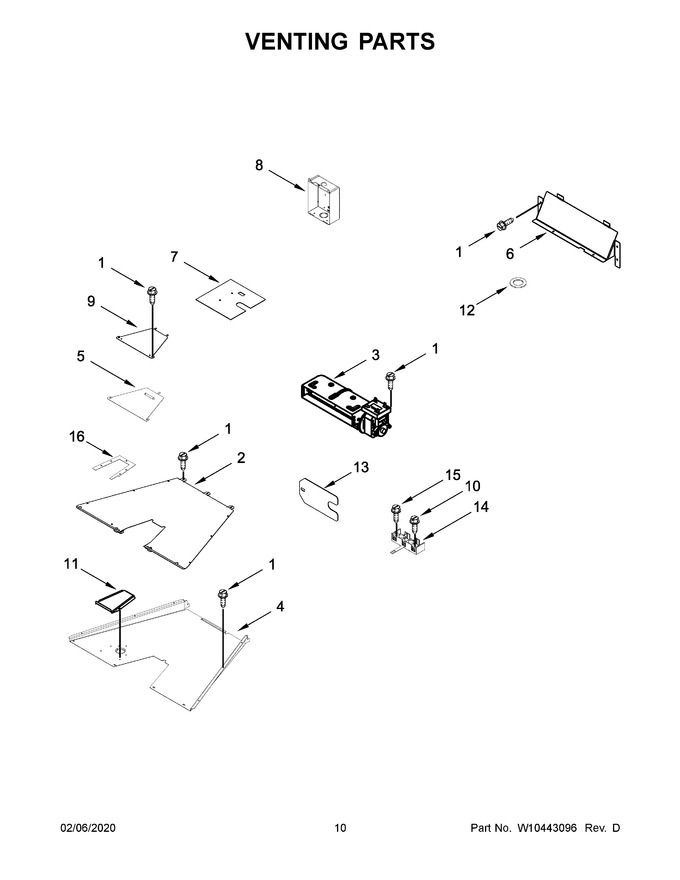

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
2	W10160896		Vent, Cooling Top (30")		Appelez-nous	-
3	WPW10245511		Blower 60mm   (Replaces: W10245511)			Immediately	$ 306.02
4	W10246078		Vent, Cooling Bottom (30")		Appelez-nous	-
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	W10160844		Bracket, Blower (18")		Appelez-nous	-
7	9759721		Insulator, Terminal Box		Appelez-nous	-
8	W10467022		Box, Terminal		Appelez-nous	-
9	W10160858		Cover, Latch				$ 76.94
10	WP112432		Nut, Hex   (Replaces: 112432)				$ 8.63
11	W10818234		Slope, Exhaust Vent (30")		Appelez-nous	-
12	W10270396		Seal, Chimney		Appelez-nous	-
13	W10145382		Cover, Channel		Appelez-nous	-
14	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
15	WP3196163		Screw   (Replaces: 3196163)				$ 7.30
16	W10270397		Seal, Vent Slope (30")		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
