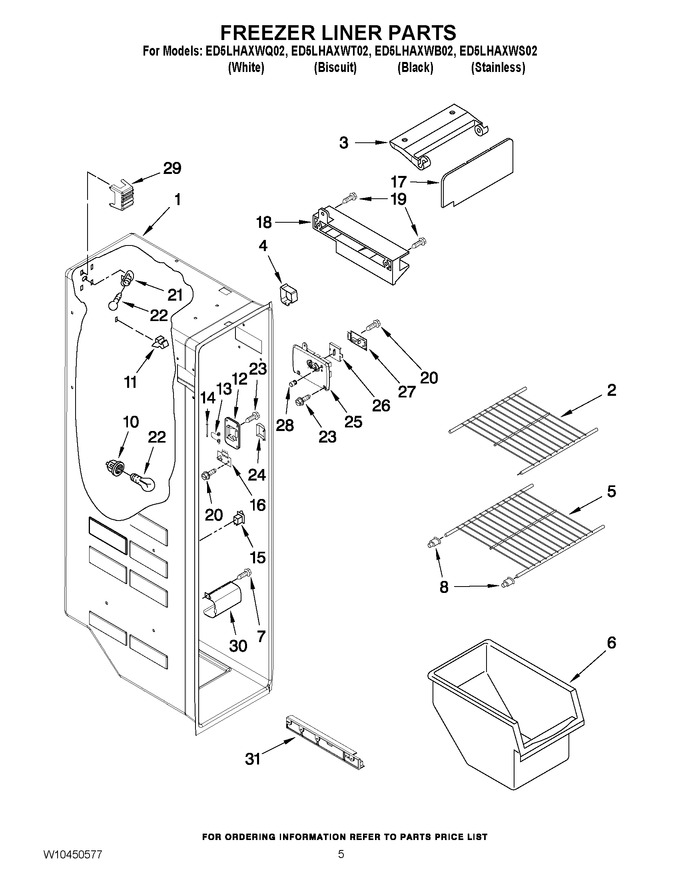

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | WP2174267 | Shelf, Wire (short) Upper (Replaces: 2174267) |
|
$ 88.90 | |||||
| 3 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 7.19 | |||||
| 4 | 2303234 | Shield, Wiring |
|
- | |||||
| 5 | 2174268 | Shelf, Wire (3) |
|
$ 38.12 | |||||
| 6 | WP2182971 | Freezer Bin (Replaces: 2182971) |
|
$ 140.21 | |||||
| 7 | W10141518 | Screw |
|
$ 9.09 | |||||
| 8 | 2176134 | Cup, Shelf |
|
$ 5.83 | |||||
| 10 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 101.10 | |||||
| 11 | 2215823 | Clip, Air Duct (2) (Replaces: 2315163) |
|
$ 10.42 | |||||
| 12 | WP2198587 | Cover, Emitter (Replaces: 2198587) |
|
$ 105.55 | |||||
| 13 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 87.08 | |||||
| 14 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 17.76 | |||||
| 15 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 16 | W11629974 | P.c. Board Emitter (Replaces: W10193840) |
|
Immediately | $ 401.07 | ||||
| 17 | WP2255720 | Cover, Ice Maker (Replaces: 2255720) |
|
$ 74.82 | |||||
| 18 | 2212321 | Slide, Ice Maker Mounting |
|
$ 67.14 | |||||
| 19 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.75 | |||||
| 20 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.13 | |||||
| 21 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 22 | W11679940 | Light Bulb (Replaces: W10311505) |
|
Immediately | $ 11.30 | ||||
| 23 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 8.05 | |||||
| 24 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 48.27 | ||||
| 25 | W10173569 | Cover, Receiver |
|
$ 66.93 | |||||
| 26 | 2315398 | Slide, Ice Maker Shut Off |
|
$ 10.90 | |||||
| 27 | W11629974 | P.c. Board, Receiver (Replaces: W10290817) |
|
Immediately | $ 401.07 | ||||
| 28 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 8.18 | |||||
| 29 | 2198589 | Light Shield |
|
- | |||||
| 30 | W11298978 | Light Lens (Replaces: 2212340) |
|
$ 93.88 | |||||
| 31 | 2261449 | Track, Basket (right) |
|
$ 46.07 | |||||
| 31 | 2261448 | Track, Basket (left) |
|
$ 46.07 |
