SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts

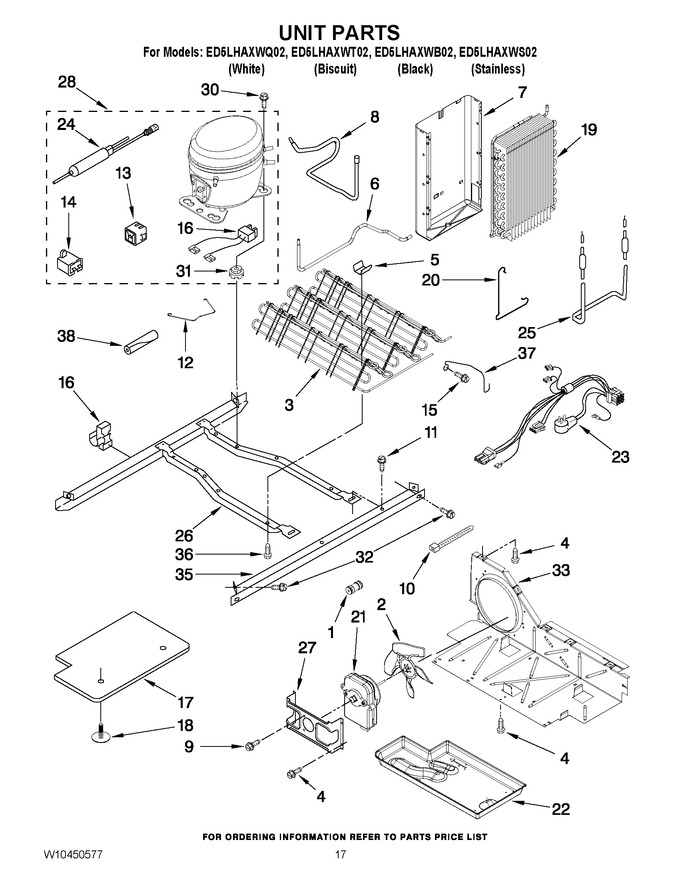

11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector   (Replaces: W10271540)				$ 22.67
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10196260)				$ 323.45
4	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
6	W10528574		Tube Suction   (Replaces: W10177642)				$ 160.36
7	2217194		Heat Shield And Drain Pan		Appelez-nous	-
8	W10221712		Process Tube		Appelez-nous	-
9	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
10	WPW10339879		Wire Tie   (Replaces: 2263990)				$ 8.30
11	WP489427		Screw   (Replaces: W10146358)				$ 7.84
12	W11661170		Clip, Retaining   (Replaces: W10174384)			Immediately	$ 11.87
13	WPW10189190		Start-device, Combination (start Relay And Overload) (service)   (Replaces: W10189190)			Immediately	$ 131.29
14	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 58.86
15	WP489478		Screw   (Replaces: W10001260)				$ 8.18
16	2208280		Clip, Wire & Tube		Appelez-nous	-
17	2304891		Unit Cover, Bottom		Appelez-nous	-
18	489396		Clip				$ 11.26
19	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
20	2161324		Clip		Appelez-nous	-
21	WP2188874		Motor, Fan   (Replaces: 2188874)			Immediately	$ 113.96
22	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
23	WPW10309395		Harness, Unit   (Replaces: W10309395)				$ 308.35
24	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
25	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
26	W10196321		Unit Mounting Frame		Appelez-nous	-
27	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
28	W10233961		Compressor (includes Items 13, 14, 24, & 31) (also Order 876765 Tube Kit)   (Replaces: W10183575)				$ 643.40
30	W11661574		Screw   (Replaces: 489473)				$ 14.29
31	W11661108		Grommet (4) (service)   (Replaces: 2183042)				$ 15.21
32	489340		Screw		Appelez-nous	-
33	W10896764		Air Baffle   (Replaces: W10411518)				$ 101.20
35	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 124.89
36	W11544659		Screw   (Replaces: 8281232)				$ 14.35
37	2260517		Guard, Fan		Appelez-nous	-
38	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
