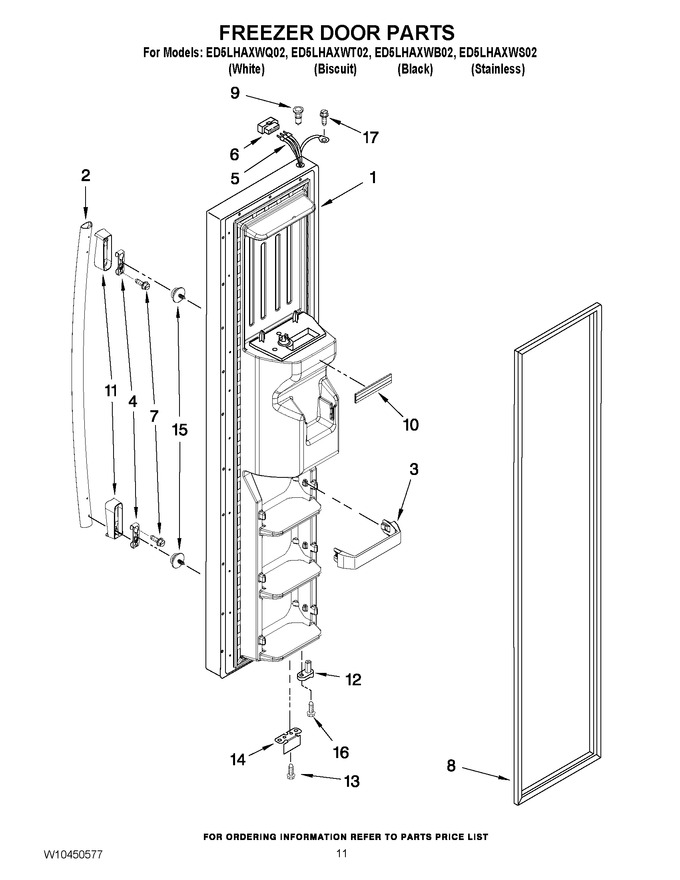

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10338823T		Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	W10338823B		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10338823S		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
1	W10338823W		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	WPW10127761K		Handle (white)   (Replaces: W10127761)				$ 186.67
2	WPW10127763		Handle (biscuit)   (Replaces: W10127763)				$ 173.22
2	WPW10127762		Handle (black)   (Replaces: W10127762)				$ 190.65
2	WPW10257118K		Handle (apollo Grey)   (Replaces: W10257118)				$ 187.61
3	WP2309718		Door Trim (3)   (Replaces: 2309718)				$ 58.56
4	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
5	2198619		Dispenser Harness		Appelez-nous	-
6	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
7	WP8533988		Screw (4)   (Replaces: W10155511)			Immediately	$ 7.95
8	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
8	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
9	WP2182181		Thimble Top   (Replaces: 2182181)				$ 7.76
10	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 23.11
11	W10127769		Handle, Endcap (white)		Appelez-nous	-
11	W10127772		Handle, Endcap (apollo Grey)				$ 49.75
11	W10127770		Handle, Endcap (black)		Appelez-nous	-
11	W10127771		Handle, Endcap (biscuit)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	W10112233		Screw		Appelez-nous	-
14	W10219814		Bracket, Door Stop (black)		Appelez-nous	-
14	W10219813		Bracket, Door Stop (silver)		Appelez-nous	-
15	WPW10288153		Screw, Mounting   (Replaces: W10288153)			Immediately	$ 8.69
16	WP3400012		Screw   (Replaces: W10142285)				$ 7.82
17	WP489128		Screw   (Replaces: 488500)				$ 10.88
