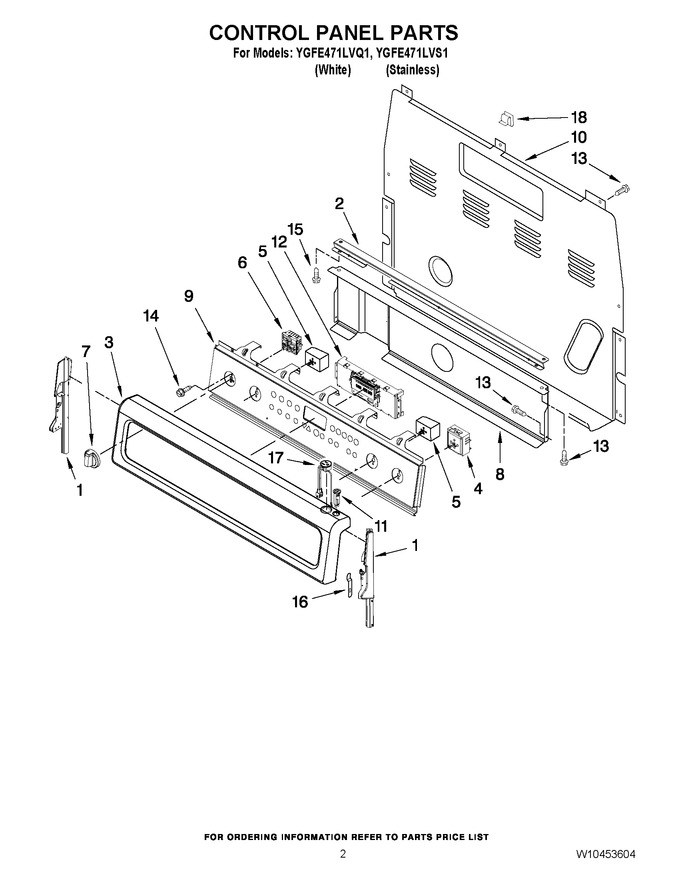

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 40.43
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 57.93
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 146.50
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 40.44
2	W10525121		Bracket, Console   (Replaces: W10182322)				$ 94.14
3	W10201511		Console (white)				$ 75.96
3	W10201513		Console (stainless)				$ 46.12
4	WPW10149355		Switch, Infinite Rf (dual)   (Replaces: W10149355)			Immediately	$ 204.91
5	5500-287		Switch, Infinite (lr, Rr)   (Replaces: 3148951)			Immediately	$ 52.39
6	WPW10169580		Infinite Switch Lf   (Replaces: W10169580)			Immediately	$ 231.01
7	W10154955		Knob, Infinite (white)				$ 21.22
7	W10155337		Knob, Infinite (black)				$ 20.15
8	W10134247		Shield, Heat			Immediately	$ 341.73
9	W10221471		Active Overlay Assembly (black)		Appelez-nous	-
9	W10224760		Active Overlay Assembly (white)				$ 274.44
10	WP8272473		Cover, Rear   (Replaces: 8272473)				$ 208.61
11	WP9757601		Breaker (white)   (Replaces: 9757601)			Immediately	$ 65.55
11	WP9757604		Breaker (stainless)   (Replaces: 9757604)			Immediately	$ 10.94
12	W10157239		Control, Range		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
14	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.19
15	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
16	3196200		Clip, Spring				$ 9.95
17	W10849725		Receptacle, Fused (white)   (Replaces: 9758885)			Immediately	$ 80.79
17	W10861164		Receptacle, Fused (stainless)   (Replaces: 9758888)			Immediately	$ 18.47
18	WP8273564		Clip, Oven Rear Upper   (Replaces: 8273564)				$ 12.06
