SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

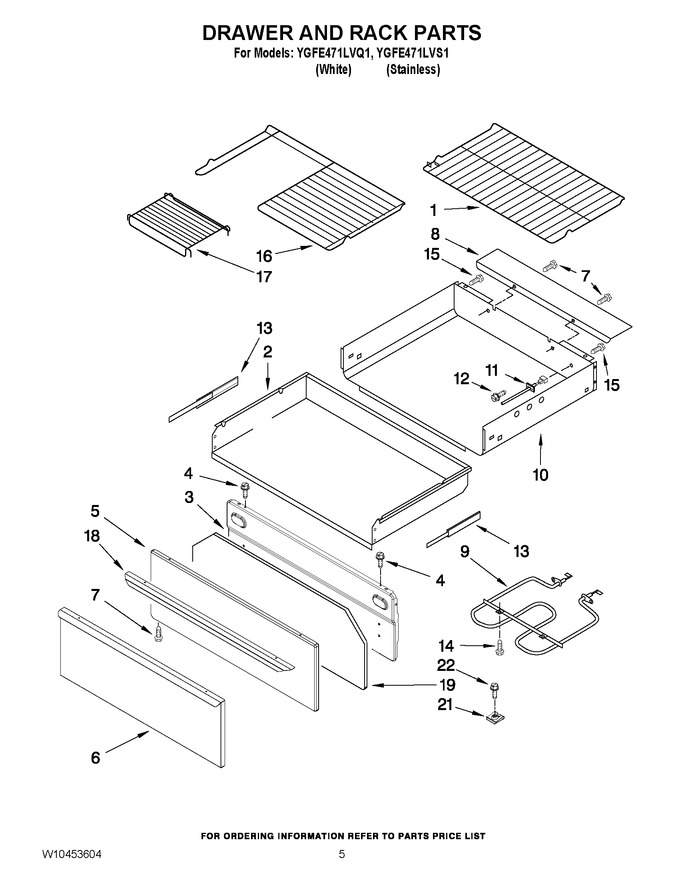

04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | 8272610 | Drawer, Warming |
|
$ 141.41 | |||||
| 3 | 8272609 | Panel, Inner |
|
$ 36.52 | |||||
| 4 | 8533819 | Screw (white) |
|
- | |||||
| 4 | W11396735 | Screw (stainless) (Replaces: W10163951) |
|
$ 14.05 | |||||
| 5 | W10282467 | Panel, Drawer Frnt (black) |
|
- | |||||
| 5 | 8272943 | Panel, Drawer Frnt (white) |
|
$ 68.67 | |||||
| 6 | W10237657 | Wrap, Stainless Model |
|
$ 116.43 | |||||
| 7 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.75 | ||||
| 8 | W10214316 | Heat Shield, Element |
|
- | |||||
| 9 | W10207401 | Element, Warming |
|
$ 105.28 | |||||
| 10 | W10145342 | Enclosure, Drawer |
|
$ 22.50 | |||||
| 11 | WPW10131827 | Sensor (Replaces: W10131827) |
|
$ 262.46 | |||||
| 12 | WPY706189 | Screw (Replaces: 3196427) |
|
Immediately | $ 7.19 | ||||
| 13 | 9761929 | Slide, Drawer (lh) |
|
$ 60.25 | |||||
| 13 | 9761930 | Slide, Drawer (rh) |
|
$ 44.45 | |||||
| 14 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.82 | ||||
| 15 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 16 | WP8274021 | Rack, Partial (Replaces: 8274021) |
|
$ 151.53 | |||||
| 17 | 4396927 | Rack, Insert (Replaces: 8274022) |
|
$ 234.38 | |||||
| 18 | W10118398 | Handle (white) |
|
$ 115.69 | |||||
| 19 | W10061390 | Insulation |
|
- | |||||
| 21 | WP9781235 | Speed Clip (Replaces: 9781235) |
|
$ 11.96 | |||||
| 22 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 |
