01 - Cooktop Parts
02 - Control Panel Parts

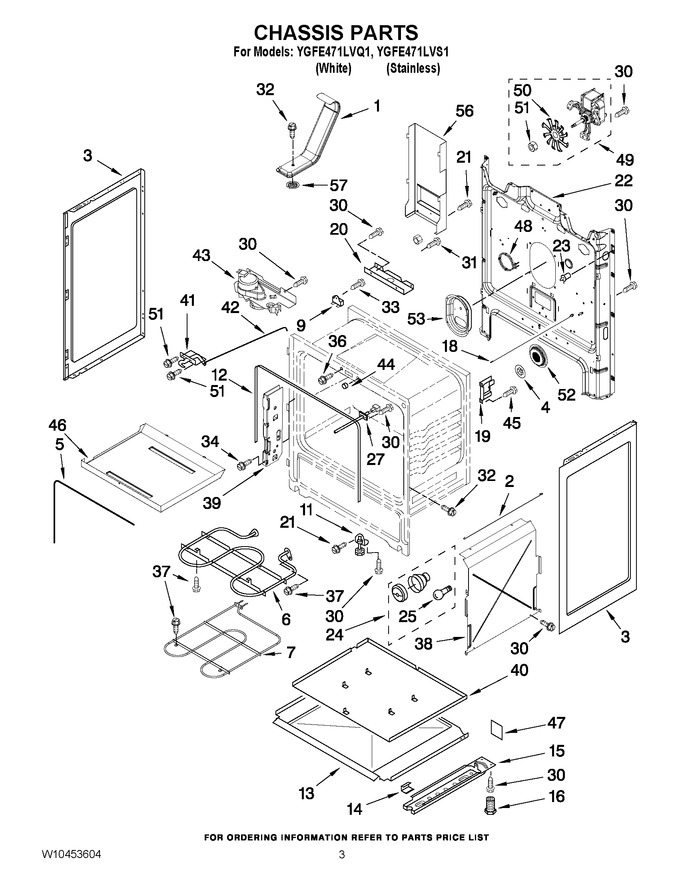

03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10134285 | Vent Tube Asmbly (Replaces: W10134285) |
|
Immediately | $ 263.00 | ||||
| 2 | W10727426 | Rod, Insulation Retainer (Replaces: W10196451) |
|
Immediately | $ 85.10 | ||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 178.50 | ||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 4 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 | ||||
| 5 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 7 | WP9755770 | Element, Bake (hidden) (Replaces: W10308474) |
|
Immediately | $ 117.66 | ||||
| 9 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 11 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 13 | W10134121 | Tray, Insulation |
|
$ 44.75 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Rail, Base (Replaces: 9760314) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 18 | 9757239 | Rod - Door Switch |
|
$ 96.37 | |||||
| 19 | W10404688 | Bracket, Oven Support (Replaces: W10355173) |
|
$ 17.69 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 22 | 9757029 | Back, Main |
|
- | |||||
| 23 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 30 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 32 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 33 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 34 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 36 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 37 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 38 | W10450380 | Retainer, Side (Replaces: 9758238) |
|
- | |||||
| 39 | W10647259 | Bracket, Mounting (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 40 | W10134125 | Shield, Heat |
|
$ 159.37 | |||||
| 41 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 256.36 | |||||
| 42 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 43 | WPW10107840 | Latch Asy, Rear (Replaces: W10107840) |
|
Immediately | $ 111.90 | ||||
| 44 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 45 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 46 | W10183712 | Tray, Hidden Bake Element |
|
$ 243.95 | |||||
| 47 | W10646923 | Card, Insulator (Replaces: 9759689) |
|
$ 19.57 | |||||
| 48 | WP9760769 | Element, Convection (Replaces: 9760769) |
|
Immediately | $ 337.88 | ||||
| 49 | W11582241 | Fan Motor, Convection (Replaces: W10167917) |
|
Immediately | $ 134.73 | ||||
| 50 | W10758272 | Fan Blade (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 51 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 52 | WPW10134124 | Cover, Fan (Replaces: W10134124) |
|
Immediately | $ 102.59 | ||||
| 53 | W10134126 | Bracket, Fan |
|
$ 23.98 | |||||
| 56 | WPW10326122 | Cover, Box (Replaces: W10326122) |
|
$ 139.60 | |||||
| 57 | 9761301 | Screen, Catalyst |
|
$ 147.90 | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 55.47 | ||||
| NI | W10326347 | Insulation, Back |
|
- | |||||
| NI | W11684918 | Insulation, Vent (Replaces: W10333344) |
|
Immediately | $ 35.48 |
