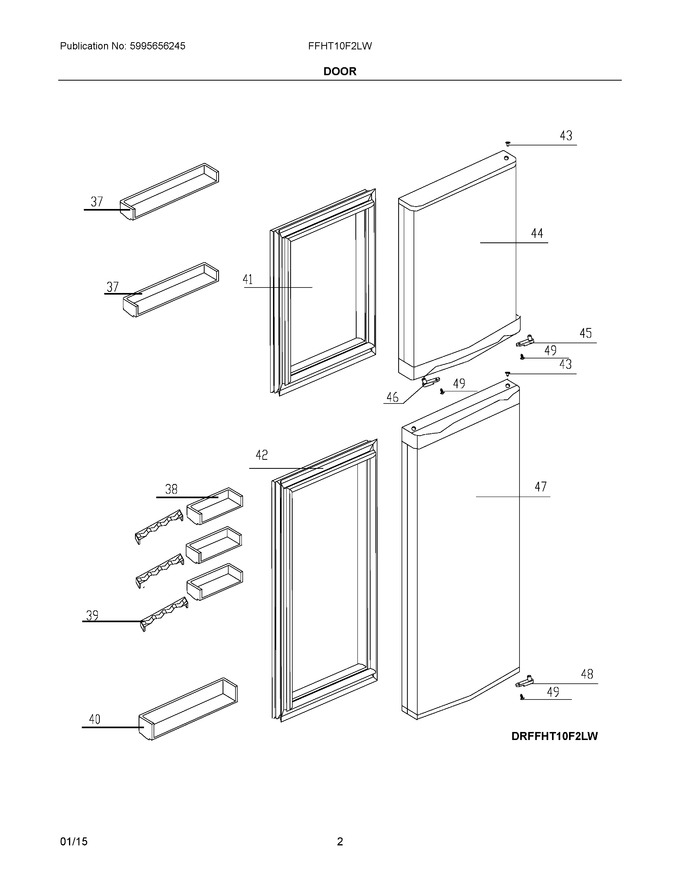

02 - Door


03 - Cabinet/controls


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
37	5304485374		Bin-door, Freezer				$ 33.65
38	5304485375		Bin-door, Refr				$ 28.93
39	5304485376		Bin-door, Refr				$ 15.28
40	5304485377		Bin-door, Refr				$ 25.62
41	5304485378		Gasket-frzr Door				$ 24.79
42	5304485379		Gasket-door, Refr				$ 51.46
43	5304485380		Bushing-door, Upper		Appelez-nous	-
44	5304485381		Door, Freezer				$ 156.12
45	5304485382		Door Stop, Frzr		Appelez-nous	-
46	5304485383		Door Stop, Lh, Frzr				$ 1.10
47	5304485384		Door-refr				$ 194.27
48	5304485385		Door Stop, Refr		Appelez-nous	-
49	5304485386		Screw-door Stop		Appelez-nous	-
