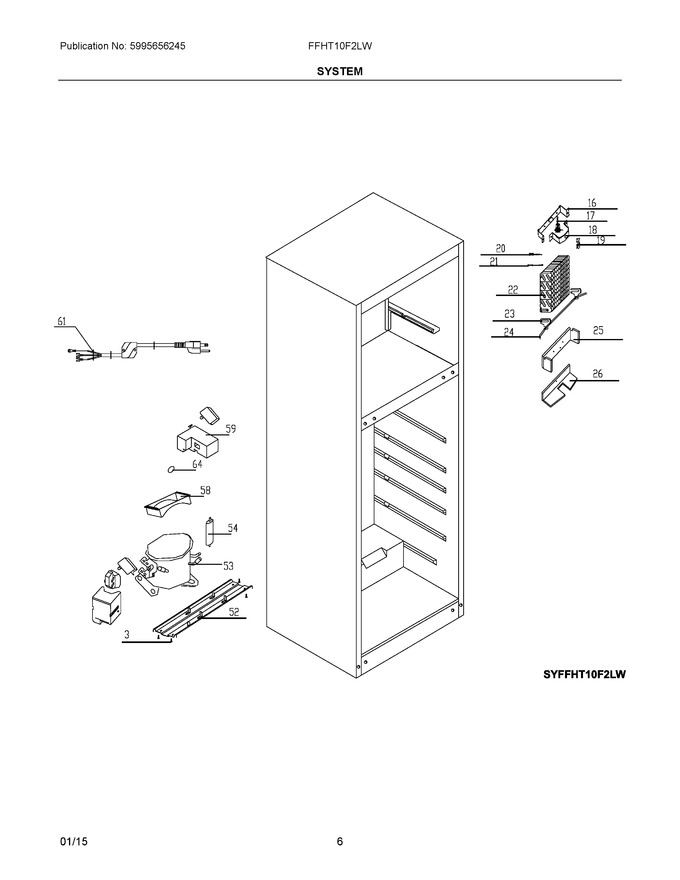

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet/controls


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304485340		Bolt		Appelez-nous	-
16	5304485353		Bracket, Fan Motor		Appelez-nous	-
17	5304485354		Motor-fan				$ 229.07
18	5304485355		Bracket, Fan Motor		Appelez-nous	-
19	5304485356		Fan Blade				$ 7.69
20	5304485357		Sensor, Defrost				$ 17.41
21	5304485358		Thermostat, Thermal Cutoff				$ 21.26
22	5304485359		Evaporator				$ 118.71
23	5304485360		Bracket-heater		Appelez-nous	-
24	5304485361		Heater-defrost				$ 46.29
25	5304485362		Panel, Drip Tray		Appelez-nous	-
26	5304485363		Drip Tray		Appelez-nous	-
52	5304485389		Plate-compressor		Appelez-nous	-
53	5304485390		Compressor				$ 338.01
54	5304485391		Filter		Appelez-nous	-
58	5304485392		Pan-drain				$ 29.88
59	5304485393		Terminal, Block				$ 27.64
61	5304485394		Power Cord		Appelez-nous	-
64	5304485397		Plug, Terminal Block		Appelez-nous	-
NIA	5304500697		Control Board, Main				$ 218.24

    View Diagram in Separate Window       Print Part List
