SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

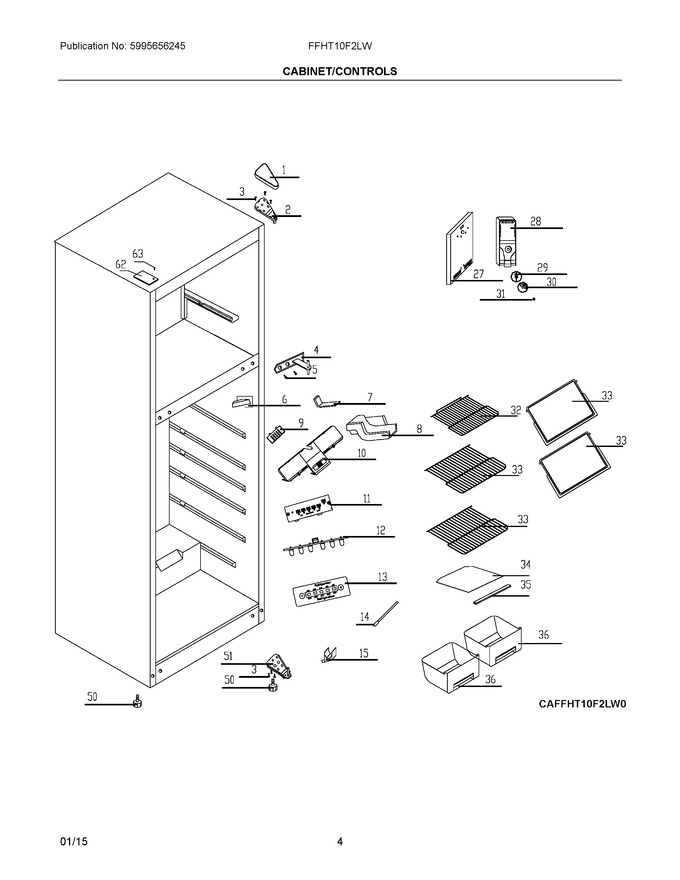

03 - Cabinet/controls


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304485338		Cover-hinge, Upper		Appelez-nous	-
2	5304485339		Hinge-upper		Appelez-nous	-
3	5304485340		Bolt		Appelez-nous	-
4	5304485341		Hinge, Middle		Appelez-nous	-
5	5304485342		Screw, Middle Hinge		Appelez-nous	-
6	5304485343		Switch, Light				$ 8.03
7	5304485344		Cover-air Duct		Appelez-nous	-
8	5304485345		Duct-air		Appelez-nous	-
9	5304485346		Cover-light				$ 3.45
10	5304485347		Thermostat, Box				$ 28.19
11	5304485348		Display				$ 28.72
12	5304485349		Led, Light				$ 32.50
13	5304485350		Membrane				$ 10.78
14	5304485351		Sensor				$ 19.43
15	5304485352		Drain		Appelez-nous	-
27	5304485364		Panel, Freezer		Appelez-nous	-
28	5304485365		Air Duct, Freezer		Appelez-nous	-
29	5304485366		Knob-control, Air Duct		Appelez-nous	-
30	5304485367		Control, Air Duct		Appelez-nous	-
31	5304485368		Clamp, Air Duct		Appelez-nous	-
32	5304485369		Shelf-freezer		Appelez-nous	-
33	5304485370		Shelf, Refr				$ 40.01
34	5304485371		Cover-crisper				$ 20.66
35	5304485372		Trim-crisper, Cover		Appelez-nous	-
36	5304485373		Pan-crisper				$ 29.98
50	5304485387		Foot, Leveling Screw, Cabinet		Appelez-nous	-
51	5304485388		Hinge-lower		Appelez-nous	-
62	5304485395		Cover-hinge		Appelez-nous	-
63	5304485396		Screw-hinge, Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
