SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

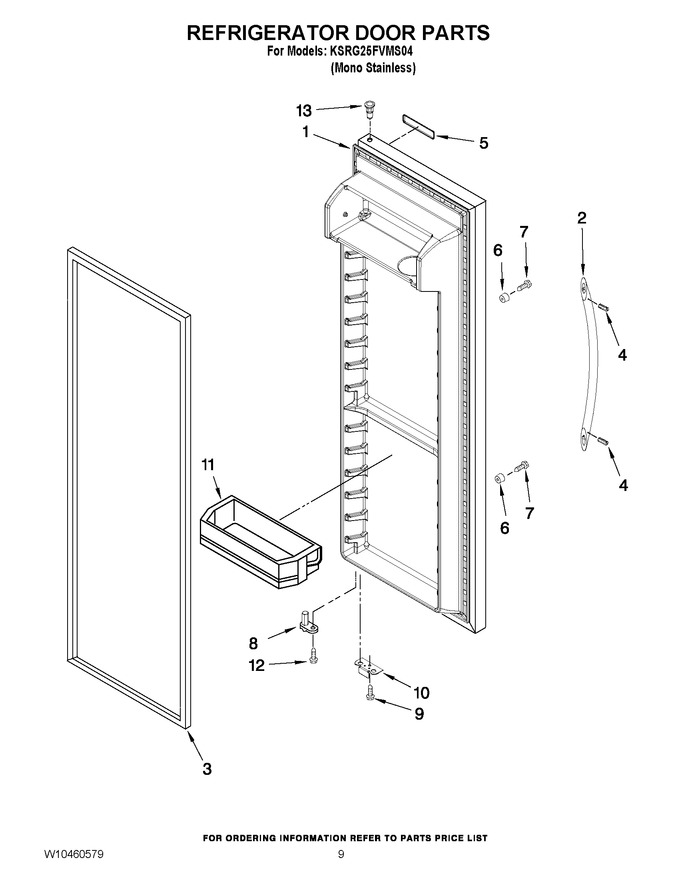

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318336		Refrigerator Door (includes No.3) (mono Stainless)		Appelez-nous	-
2	2319727S		Handle (stainless)				$ 133.96
3	WPW10136734		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326338)				$ 335.39
4	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
5	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 58.31
6	WPW10170540		Stud   (Replaces: W10170540)			Immediately	$ 8.51
7	W11366418		Screw   (Replaces: W10010140)			Immediately	$ 15.79
8	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
9	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
10	W10219811		Bracket, Door Stop (chrome)				$ 25.43
11	W10169669		Door Bin				$ 35.96
12	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15

    View Diagram in Separate Window       Print Part List
