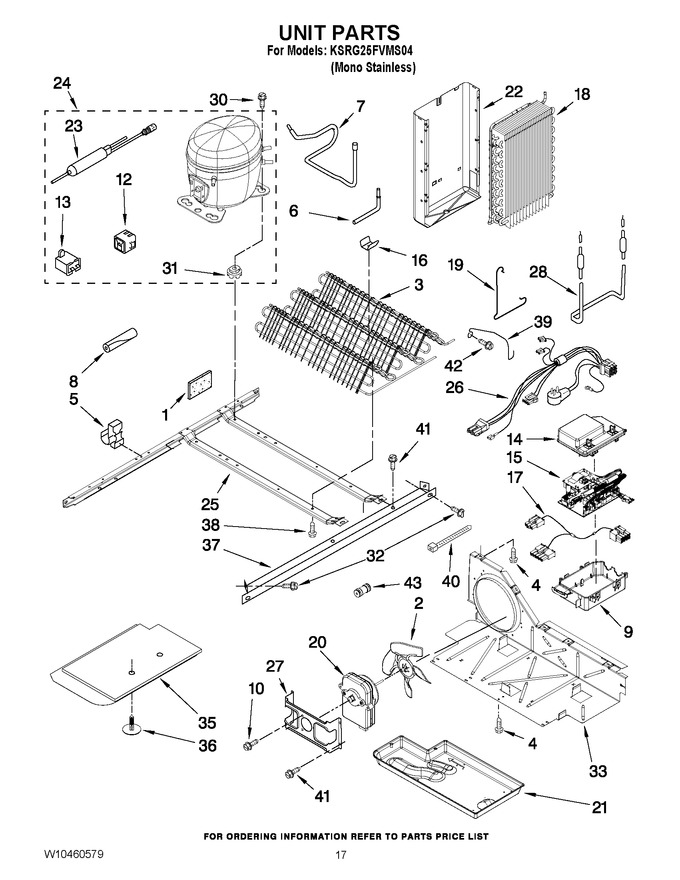

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11553819 | Insulation-sound (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 2 | W10156818 | Fan, Blade (Replaces: 12825802) |
|
Immediately | $ 62.11 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10196260) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 5 | W10169512 | Clip, Wire |
|
- | |||||
| 6 | W10221712 | Tube, Process |
|
- | |||||
| 7 | W10528574 | Tube Suction (Replaces: W10177642) |
|
$ 160.36 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | 2326982 | Box, Control |
|
$ 90.37 | |||||
| 10 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 12 | WPW10189190 | Start Device, Combination(start Relay And Overload) (Replaces: W10189190) |
|
Immediately | $ 131.29 | ||||
| 13 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 14 | 2255624 | Cover, Control |
|
- | |||||
| 15 | W10259855 | Elec Control |
|
$ 350.35 | |||||
| 16 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 19.38 | |||||
| 17 | 2310439 | Harness, Elec Ctl |
|
- | |||||
| 18 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 19 | 2161324 | Clamp |
|
- | |||||
| 20 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 21 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 22 | W10203138 | Heat Shield |
|
- | |||||
| 23 | WPW10143759 | Drier (Replaces: W10423407) |
|
Immediately | $ 30.78 | ||||
| 24 | W10233961 | Compressor (also Order 876765 Tube Kit) (Replaces: W10183575) |
|
$ 643.40 | |||||
| 25 | 2304754 | Unit Mounting Frame |
|
- | |||||
| 26 | 2310425 | Unit, Harness |
|
$ 230.95 | |||||
| 27 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 12.93 | |||||
| 28 | WP2323198 | Heater, Defrost (Replaces: 2323198) |
|
Immediately | $ 90.70 | ||||
| 30 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 31 | W11661108 | Grommet (Replaces: 2183042) |
|
$ 15.21 | |||||
| 32 | 489340 | Screw |
|
- | |||||
| 33 | W10896764 | Air Baffle (Replaces: W10411518) |
|
$ 101.20 | |||||
| 35 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 36 | 489396 | Clip |
|
$ 11.26 | |||||
| 37 | 2305374 | Unit Mounting Rail |
|
$ 84.67 | |||||
| 38 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 39 | W11661170 | Guard, Fan (Replaces: W10174384) |
|
Immediately | $ 11.87 | ||||
| 40 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 8.30 | |||||
| 41 | WP489427 | Screw (Replaces: W10146358) |
|
$ 7.84 | |||||
| 42 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 43 | W10271542 | Connector, Water Tube |
|
$ 13.51 | |||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.00 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 |
