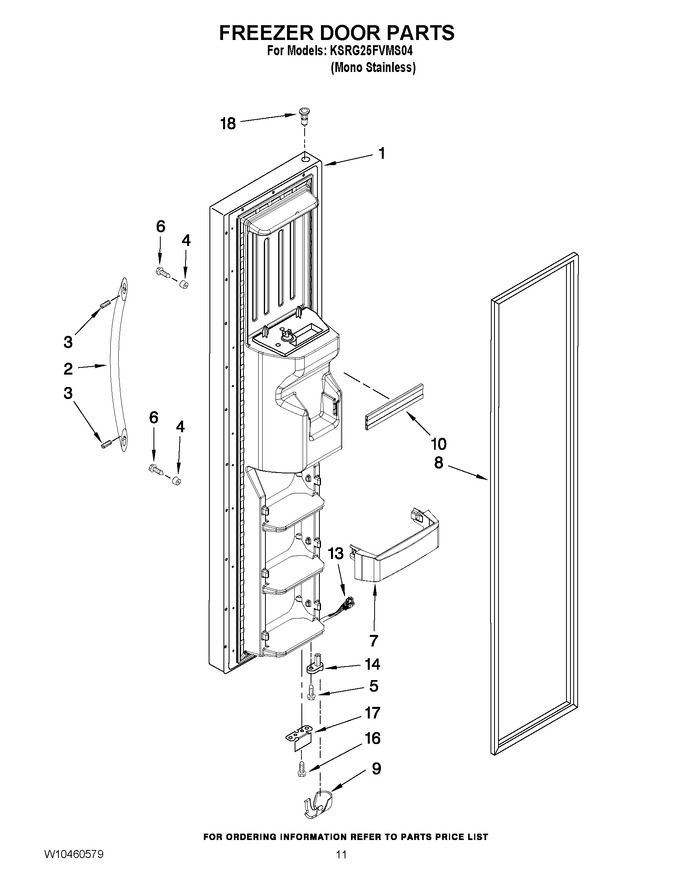

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318285		Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless)		Appelez-nous	-
2	2319727S		Handle (stainless)				$ 133.96
3	W11366418		Screw (chrome)   (Replaces: W10010140)			Immediately	$ 15.79
4	WPW10170540		Stud   (Replaces: W10170540)			Immediately	$ 8.51
5	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
6	W11366418		Screw   (Replaces: W10010140)			Immediately	$ 15.79
7	WP2171157		Shelf Bin   (Replaces: 2171157)				$ 63.70
8	W10136735		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2326339)				$ 254.84
9	2323581		Thimble Cover		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
13	WPW10193328		Wire Harness   (Replaces: W10193328)				$ 134.19
14	2323535		Door Closer, Upper Cam				$ 33.97
16	WPW10142233		Screw   (Replaces: W10142233)				$ 8.93
17	W10219799		Bracket, Door Stop (chrome)		Appelez-nous	-
18	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
