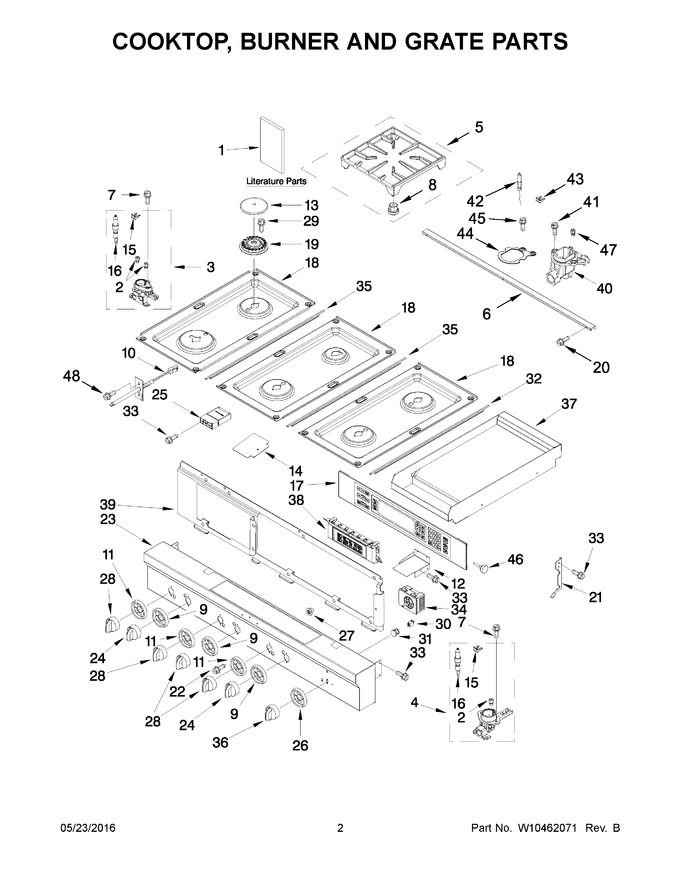

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403297 | Sheet, Tech (english) |
|
- | |||||
| 2 | W10340424 | Orifice (17k) (left Front & Right Front, High) |
|
$ 93.67 | |||||
| 3 | WPW10364555 | Assembly, Orifice Holder (left Front & Right Front) (Replaces: W10364555) |
|
$ 113.42 | |||||
| 4 | WPW10364556 | Assembly, Orifice Holder (left Rear, Right Rear, Center Front) (Replaces: W10364556) |
|
$ 102.39 | |||||
| 5 | W11569347 | Grate, Burner (includes 2 Grates) (black) (Replaces: W10221252) |
|
$ 365.12 | |||||
| 6 | W10269216 | Trim, Island |
|
- | |||||
| 7 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 7.55 | ||||
| 8 | W10185266 | Bumper, Grate (Replaces: 8286695) |
|
Immediately | $ 15.47 | ||||
| 9 | W10261510 | Bezel, Front |
|
$ 55.11 | |||||
| 10 | W10319835 | Sensor, Griddle |
|
$ 239.28 | |||||
| 11 | W10261512 | Bezel, Rear |
|
- | |||||
| 12 | W10498407 | Bracket, Spark Module |
|
$ 78.97 | |||||
| 13 | WPW10256034 | Cap, Burner (black (left Front & Right Front)) (Replaces: W10256034) |
|
$ 138.19 | |||||
| 14 | W10287036 | Cover, Housing |
|
- | |||||
| 15 | W10256046 | Spring, Electrode (all Except Center Rear) |
|
$ 11.56 | |||||
| 16 | W10833887 | Electrode, Burner (all Except Center Rear) (Replaces: W10256047) |
|
Immediately | $ 31.77 | ||||
| 17 | WPW10116117 | Keypad, Urso Double (Replaces: W10116117) |
|
$ 311.48 | |||||
| 18 | W10352969 | Cooktop (black (left)) |
|
$ 335.75 | |||||
| 19 | W11106799 | Spreader, Flame (left Front & Right Front) (Replaces: W10495853) |
|
Immediately | $ 89.01 | ||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 21 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 22 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 23 | W10284667 | Assembly, Console |
|
- | |||||
| 24 | W11244176 | Knob (left Front & Right Front) (Replaces: W10250389) |
|
$ 78.37 | |||||
| 25 | WPW10475147 | Module, Spark (Replaces: W10475147) |
|
Immediately | $ 238.24 | ||||
| 26 | W10261515 | Bezel, Griddle |
|
- | |||||
| 27 | 7103P166-60 | Nut |
|
$ 18.56 | |||||
| 28 | W11177673 | Knob (left Rear, Right Rear, Center Front, Center Rear) (Replaces: W10250391) |
|
$ 90.55 | |||||
| 29 | WPW10373929 | Screw (Replaces: W10373929) |
|
$ 43.65 | |||||
| 30 | W10116151 | Housing, Indicator Light |
|
$ 79.16 | |||||
| 31 | W10116115 | Lens, Indicator Light |
|
$ 7.86 | |||||
| 32 | W10291193 | Trim, L-strip |
|
- | |||||
| 33 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 34 | WPW10116113 | Control, Griddle (Replaces: W10116113) |
|
$ 351.97 | |||||
| 35 | W10271524 | T-strip |
|
$ 212.34 | |||||
| 36 | W10250390 | Knob, Griddle |
|
$ 36.98 | |||||
| 37 | W10625221 | Module, Griddle |
|
$ 1,457.32 | |||||
| 38 | WPW10298120 | Interface, User (Replaces: W10298120) |
|
$ 458.85 | |||||
| 39 | W10250476 | Bracket, User Interface |
|
- | |||||
| 40 | W10282659 | Assembly, Orifice Holder (center Rear) |
|
$ 40.50 | |||||
| 41 | W11676349 | Screw (Replaces: 8286921) |
|
Immediately | $ 14.76 | ||||
| 42 | 8286724 | Electrode, Burner (center Rear) |
|
$ 30.12 | |||||
| 43 | 8286863 | Spring, Electrode (center Rear) |
|
$ 76.92 | |||||
| 44 | 8286930 | Gasket, Orifice |
|
$ 95.73 | |||||
| 45 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 46 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 47 | W10791075 | Orifice (5k) (center Rear) (Replaces: W10282663) |
|
$ 103.68 | |||||
| 48 | WPW10068250 | Screw (Replaces: 7101P074-60) |
|
$ 4.27 | |||||
| 13A | WPW10256032 | Cap, Burner (black (left Rear, Right Rear, Center Front)) (Replaces: W10256032) |
|
Immediately | $ 88.38 | ||||
| 13B | WPW10364463 | Cap, Burner (black (center Rear)) (Replaces: W10364463) |
|
Immediately | $ 55.85 | ||||
| 18A | W10352966 | Cooktop (black (center)) |
|
$ 320.43 | |||||
| 18B | W10352963 | Cooktop (black (right)) |
|
$ 317.55 | |||||
| 19A | WPW10256027 | Spreader, Flame (left Rear, Right Rear, Center Front) (Replaces: W10256027) |
|
Immediately | $ 101.02 | ||||
| 19B | WPW10282515 | Spreader, Flame (center Rear) (Replaces: W10282515) |
|
Immediately | $ 149.87 | ||||
| 1A | W10403298 | Sheet, Tech (french) |
|
- | |||||
| 1B | W10837386 | Guide, Use & Care |
|
- | |||||
| 1C | W10825473 | Instructions, Installation |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 21A | W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 | |||||
| 2A | W10819958 | Orifice (1.2k) (left Front & Right Front, Low) (Replaces: W10256132) |
|
$ 97.77 | |||||
| 2B | W11051480 | Orifice (15k) (left Rear, Right Rear, Center Front) (Replaces: W10364221) |
|
$ 90.69 | |||||
| NI | W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | ||||
| NI | W10494088 | Harness, Wire (communication) |
|
Immediately | $ 75.57 | ||||
| NI | W11675299 | Tie, Cable (Replaces: W10368807) |
|
$ 13.53 | |||||
| NI | 9757778 | Bushing, Snap Split |
|
$ 97.63 | |||||
| NI | W10177363 | Grommet, Flexible 60mm |
|
- | |||||
| NI | W10726866 | Connector, Ribbon |
|
$ 83.88 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 8287106 | Clip, Wire (Replaces: W10183556) |
|
- | |||||
| NI | W10766100 | Kit, Lp Conversion |
|
- | |||||
| NI | W10856625 | Reducer, Stem (Replaces: W10340850) |
|
$ 189.23 | |||||
| NI | W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 | |||||
| NI | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10338989 | Harness, Main 18 |
|
- | |||||
| NI | W10338986 | Harness, Wiring (main) |
|
$ 335.03 | |||||
| NI | W10116182 | Harness, Griddle |
|
- | |||||
| NI | W10399621 | Harness, Switch Non-steam |
|
- | |||||
| NI | W10507832 | Harness, Ignitior |
|
$ 165.54 |
