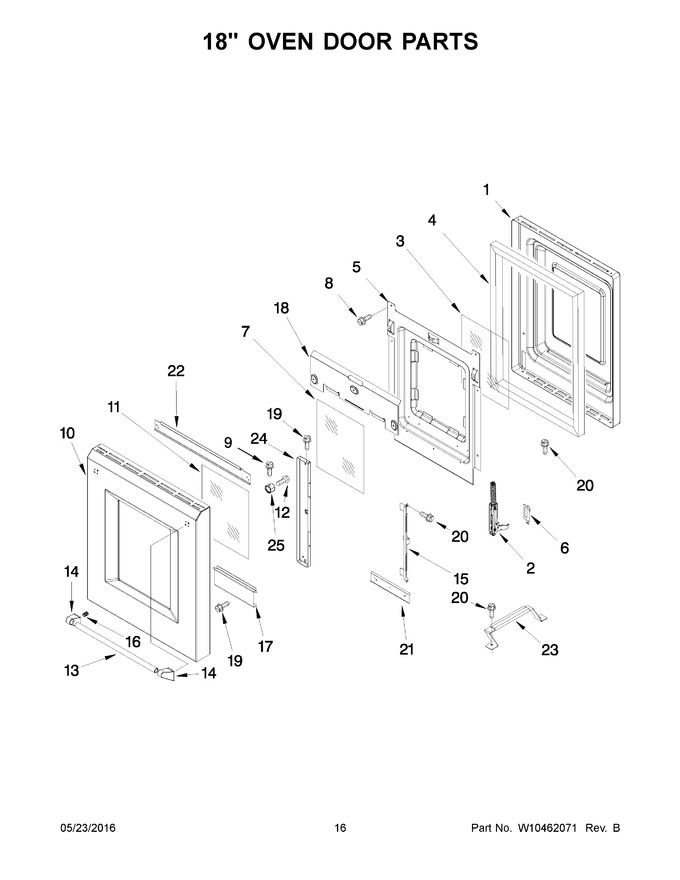

09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188323		Panel, Interior Door		Appelez-nous	-
2	W10774089		Hinge, Door (left)		Appelez-nous	-
3	W10115693		Glass, Inner Door		Appelez-nous	-
4	W10115737		Insulation, Door		Appelez-nous	-
5	W10188325		Retainer, Glass		Appelez-nous	-
6	W10115876		Cover, Hinge (left)		Appelez-nous	-
7	WPW10115695		Glass, Door Inner   (Replaces: W10115695)				$ 181.10
8	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
9	W10061760		Screw				$ 7.62
10	WPW10226004		Panel, Exterior   (Replaces: W10226004)				$ 374.63
11	WPW10115710		Glass, Outer   (Replaces: W10115710)				$ 209.31
12	W10217130		Screw				$ 13.08
13	W10115719		Door Handle		Appelez-nous	-
14	W10226026		Handle, End Cap (left)			Immediately	$ 49.20
15	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 187.50
16	W10771437		Screw   (Replaces: W10212184)				$ 7.46
17	W10145808		Bracket, Outer Glass Bottom		Appelez-nous	-
18	W10115700		Shield, Top Heat		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
20	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
21	W10115708		Shield, Lower Heat		Appelez-nous	-
22	W10145807		Bracket-top, Outer Glass		Appelez-nous	-
23	9759230		Bracket, Central				$ 36.30
24	W10145811		Bracket, Outer Glass (side)		Appelez-nous	-
25	W10225964		Support, Handle				$ 10.41
14A	W10226025		Handle, End Cap (right)				$ 96.58
2A	W10774088		Hinge, Door (right)		Appelez-nous	-
6A	W10115877		Cover, Hinge (right)		Appelez-nous	-
