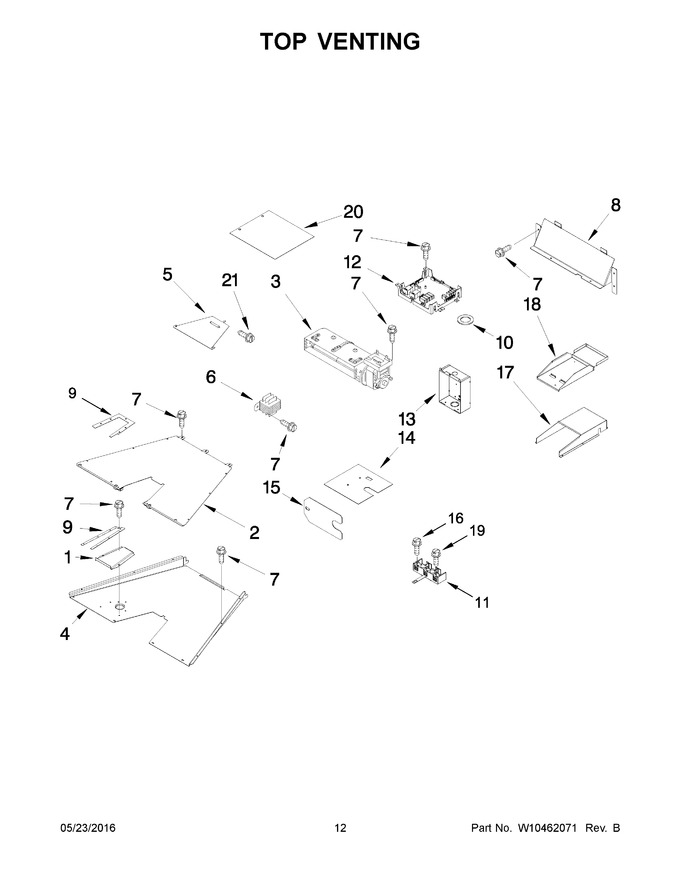

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10818234		Slope, Exhaust Vent (30")		Appelez-nous	-
2	W10160896		Vent, Cooling Top (30")		Appelez-nous	-
3	WPW10245511		Blower 60mm   (Replaces: W10245511)			Immediately	$ 306.02
4	W10246078		Vent, Cooling Bottom (30")		Appelez-nous	-
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	W10495854		Transformer, Control			Immediately	$ 228.17
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	W10160844		Bracket, Blower (18")		Appelez-nous	-
9	W10270397		Seal, Vent Slope (30")		Appelez-nous	-
10	W10270396		Seal, Chimney		Appelez-nous	-
11	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
12	W10852104		Manager, Appliance   (Replaces: W10825620)			Immediately	$ 418.05
13	W10467022		Box, Terminal		Appelez-nous	-
14	9759721		Insulator, Terminal Box		Appelez-nous	-
15	W10618712		Cover, Channel		Appelez-nous	-
16	WP3196163		Screw   (Replaces: 3196163)				$ 7.30
17	W10235557		Assembly, Drawer		Appelez-nous	-
18	W10249337		Support, Control		Appelez-nous	-
19	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.55
20	W10239444		Seal, Control		Appelez-nous	-
21	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 8.76
1A	W10818235		Slope, Exhaust Vent (18")		Appelez-nous	-
9A	W10270402		Seal, Vent Slope (18")		Appelez-nous	-
