01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Motor And Ice Container Parts


08 - Icemaker Parts


09 - Freezer Door Parts


10 - Dispenser Front Parts


11 - Optional Parts (not Included)

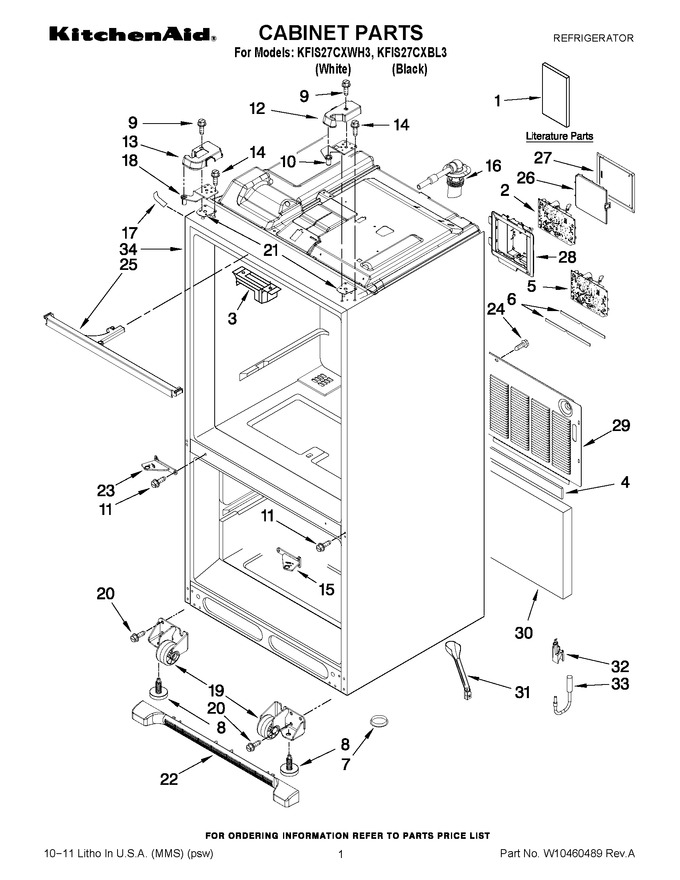

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10423562		Tech Sheet		Appelez-nous	-
1	W10368199		Tag, Energy		Appelez-nous	-
1	W10278586		Owners Manual		Appelez-nous	-
2	WPW10226427		Power Supply   (Replaces: W10226427)			Immediately	$ 351.93
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759655		Gasket				$ 13.03
5	WPW10267646		Board, Control (hv, Gemini)   (Replaces: W10267646)				$ 373.82
6	12957801K		Gasket, Hv Box		Appelez-nous	-
7	A3076901		Plug, Button				$ 5.70
8	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 8.24
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 31.90
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.72
12	W10272996		Cover, Right Hinge (black)		Appelez-nous	-
12	W10272995		Cover, Right Hinge (white)		Appelez-nous	-
13	W10272484		Cover, Left Hinge (black)		Appelez-nous	-
13	W10272483		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 8.43
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 13000008ED)				$ 91.53
15	13000002WD		Hinge, Center (rt) (white)				$ 160.99
16	W10213219		Fill Tube, Icemaker				$ 59.52
17	67003485		Cover, Corner (2) (black)   (Replaces: 12587703B)			Immediately	$ 22.14
17	12587703W		Cover, Corner (2) (white)				$ 22.90
18	W10213415		Hinge, (top Left)				$ 78.75
19	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 37.35
19	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 37.35
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 8.15
21	12999501		Shim, Hinge (left)				$ 99.53
21	12999502		Shim, Hinge (right)				$ 100.60
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 154.57
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 153.66
23	W10918164		Hinge, Center (lt) (black)   (Replaces: 13000007ED)				$ 91.53
23	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 97.92
24	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 7.30
25	W10253808		Cover, Water Line (white)		Appelez-nous	-
25	W10253809		Cover, Water Line (black)		Appelez-nous	-
26	W11226688		Lid-hv Box   (Replaces: W10296541)				$ 85.16
27	12961602		Cover, Control Box				$ 116.19
28	W10159461		Box-hv Control		Appelez-nous	-
29	WPW10270394		Cover, Unit   (Replaces: W10270394)				$ 208.73
30	12820505		Insulation, Sound				$ 71.70
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
32	W10236761		Cover, Water Valve				$ 16.11
33	W10349052		Waterline, Household				$ 78.91
34	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
