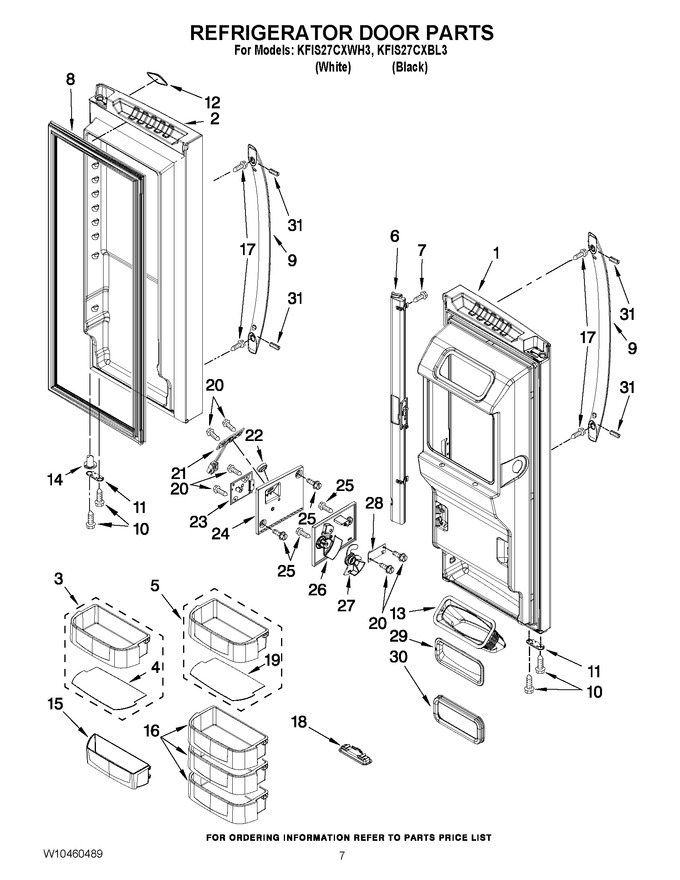

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13102620W		Door, Left (white)		Appelez-nous	-
1	13102620B		Door, Left (black)		Appelez-nous	-
2	13102619W		Door, Right (white)		Appelez-nous	-
2	13102619B		Door, Right (black)		Appelez-nous	-
3	W10283472		Bucket, Door Small (includes No.4)		Appelez-nous	-
4	W10283151		Gripper, Gallon		Appelez-nous	-
5	W10283469		Bucket, Door Gallon (includes No.4)				$ 39.21
6	12722815B		Mullion, Door (black)				$ 303.72
6	WP12722815W		Mullion, Door (white)   (Replaces: 12722815W)				$ 338.76
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	W11396037		Gasket, Door (white)   (Replaces: W10163896)				$ 312.66
8	W11378944		Gasket, Door (black)   (Replaces: W10163898)				$ 187.59
9	WPW10314515		Handle, Door (white)   (Replaces: W10314515)				$ 238.49
9	W10314516		Handle, Door (black)		Appelez-nous	-
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	W11708403		Stop, Door (black)   (Replaces: 12968202B)			Immediately	$ 14.75
11	12968202W		Stop, Door (white)				$ 69.29
12	WPW10243392		Nameplate (black)   (Replaces: W10243392)				$ 73.70
12	WPW10243393		Nameplate (white)   (Replaces: W10243393)				$ 69.98
13	W10213592		Chute-ice Door				$ 28.23
14	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
14	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15
15	W10280560		Bucket, Small				$ 35.50
16	W10255487		Bucket, Door Gallon (rh) (without Gripper)				$ 36.06
17	WPW10661886		Screw-handle   (Replaces: W10303465)			Immediately	$ 12.88
18	W10212141		Latch, Ice Bin		Appelez-nous	-
19	W10283145		Gripper		Appelez-nous	-
20	2006254		Screw   (Replaces: 12993001)				$ 13.79
21	WPW10305123		Led, Ice Bin   (Replaces: W10305123)				$ 197.33
22	W10225288		Lens, Ice Bin Led		Appelez-nous	-
23	W11813704		Board, Receiver   (Replaces: W10273549)			Immediately	$ 328.97
24	W10251672		Cover, Receiver				$ 35.70
25	WP3400065		Screw   (Replaces: 3400065)			Immediately	$ 8.18
26	W10199834		Cover, Emitter				$ 37.43
27	W10211511		Shutoff, Emitter				$ 34.01
28	W10870822		Board, Emitter   (Replaces: W10180607)			Immediately	$ 222.54
29	W10247763		Seal, Ice Door				$ 33.55
30	W10247668		Gasket, Ice Chute				$ 24.44
31	WP3400203		Set Screw   (Replaces: W10287054)			Immediately	$ 5.04
