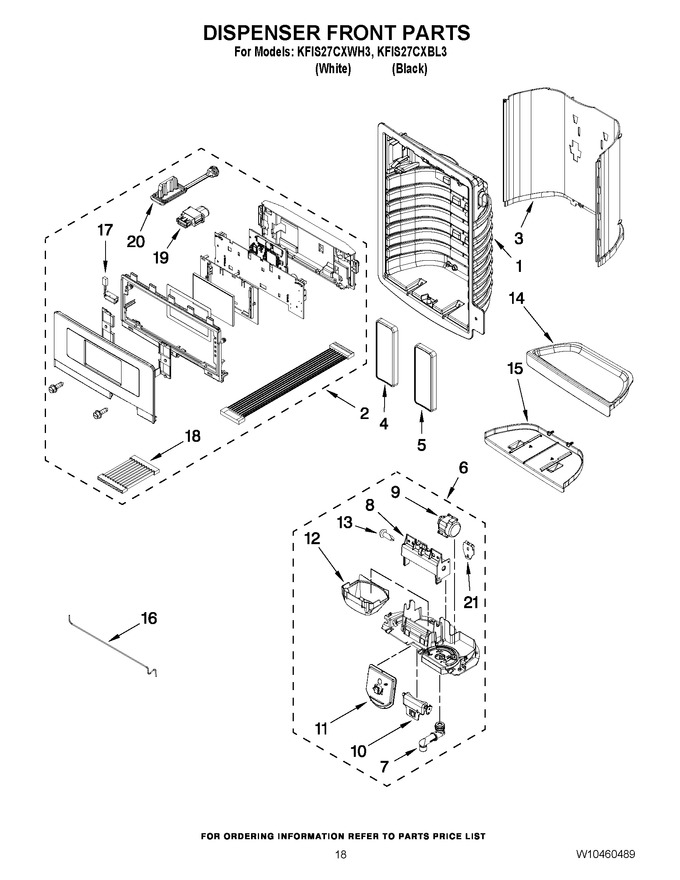

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10425207		Ui Assembly (black)		Appelez-nous	-
2	W10425206		Ui Assembly (white)		Appelez-nous	-
3	W11045976		False, Wall, Dispenser (black)   (Replaces: W10233560)				$ 43.18
3	W11045975		False, Wall, Dispenser (white)   (Replaces: W10215699)		Appelez-nous	-
4	W10334783		Pad, Ice (black)		Appelez-nous	-
4	W10334780		Pad, Ice (white)		Appelez-nous	-
5	W10334807		Pad, Water (black)		Appelez-nous	-
5	W10334804		Pad, Water (white)		Appelez-nous	-
6	WPW10353552		Separator Assembly   (Replaces: W10353552)				$ 166.29
7	W11227371		Spigot   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 20.52
12	WPW10435760		Guide, Ice   (Replaces: W10339578)			Immediately	$ 23.94
13	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
14	W11045971		Tray, Dispenser (black)   (Replaces: W10267870)				$ 65.90
14	W11045970		Tray, Dispenser (white)   (Replaces: W10267869)				$ 65.93
15	W10267861		Slide Tray, Dispenser (black)				$ 74.39
15	W10267860		Slide, Tray Dispenser (white)		Appelez-nous	-
16	W10314372		Tube, Water				$ 54.47
17	W11290115		Led   (Replaces: W10238083)				$ 84.45
18	W10193350		Harness, Jumper				$ 56.57
19	W10278979		Harness, Usb		Appelez-nous	-
20	W10309116		Cover- Usb		Appelez-nous	-
21	W10174818		Clip, Motor		Appelez-nous	-
