SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Internal Oven Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)

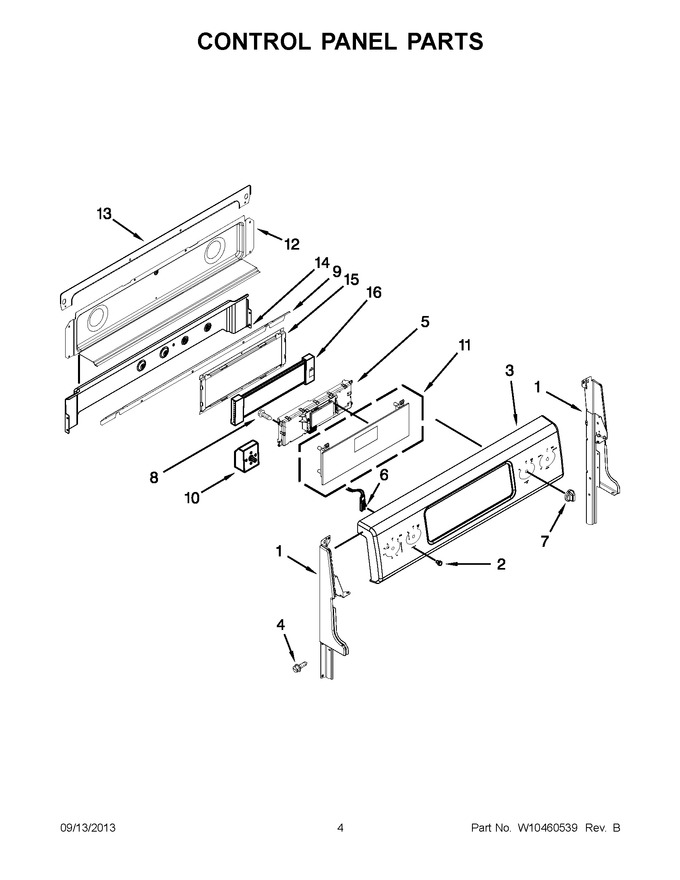

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left Hand))				$ 88.42
1	W10319111		Support, Backguard (black (right Hand))				$ 43.80
1	W10319110		Support, Backguard (white (left Hand))				$ 91.38
1	W10319112		Support, Backguard (white (right Hand))				$ 89.32
2	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
3	W10295099		Console (black)		Appelez-nous	-
3	W10295098		Console (white)		Appelez-nous	-
3	W10295100		Console (stainless)		Appelez-nous	-
4	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 17.71
5	W10365419		Control, Electronic		Appelez-nous	-
6	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.91
7	W10377035		Knob (black)		Appelez-nous	-
7	W10377036		Knob (white)		Appelez-nous	-
7	W10377034		Knob (stainless)				$ 41.36
8	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.19
9	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 92.00
10	WPW10441696		Switch, Infinite (right Front)   (Replaces: W10441696)			Immediately	$ 112.10
10	WPW10296657		Switch, Infinite (left Front)   (Replaces: W10296657)			Immediately	$ 248.84
10	WPW10295048		Switch, Infinite (right Rear)   (Replaces: W10295048)			Immediately	$ 152.33
10	WP7403P238-60		Switch, Infinite (left Rear)   (Replaces: 7403P373-60)			Immediately	$ 64.20
11	W10295108		Panel Assembly, Control Includes Lens And Membrane Switch (black)		Appelez-nous	-
12	W10296773		Cover, Backguard				$ 185.26
13	WPW10292689		Cover, Wire Filler   (Replaces: W10292689)				$ 90.81
14	W10278697		Shield, Vent			Immediately	$ 174.60
15	W10280451		Bracket, Glass Console		Appelez-nous	-
16	WPW10318787		Connector, Flex   (Replaces: W10318787)				$ 114.23

    View Diagram in Separate Window       Print Part List
