Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10292033 Lining, Door Special Order $ 115.75

2 W11132120 Glass, Inner   (Replaces: W10272707) Special Order $ 179.33

3 WPW10272708 Frame, Glass   (Replaces: W10272708) Special Order $ 171.93

4 WPW10292297 Screw   (Replaces: W10292297) In-Stock Immediately $ 7.55

5 W10340589 Retainer, Insulation Special Order $ 105.40

6 WPW10321271 Insulation, Door   (Replaces: W10321271) Special Order $ 99.18

7 W10647259 Receiver, Hinge   (Replaces: W10289077) In-Stock Immediately $ 9.32

8 W10326119 Assembly, Glass Door (stainless) Appelez-nous -
8 W10354946 Assembly, Glass Door (white) Appelez-nous -
8 W10354947 Assembly, Glass Door (black) Appelez-nous -
9 WPW10294695 Black   (Replaces: W10294695) Special Order $ 147.02

10 WPW10317886 Screw   (Replaces: W10317886) In-Stock Immediately $ 8.20

11 WPW10289076 Handle, Door (stainless)   (Replaces: W10289076) Special Order $ 334.61

11 W10289074 Handle, Door (white) Special Order $ 266.24

11 W10289075 Handle, Door (black) Special Order $ 273.77

12 W10335429 Hinge, Door (right) Special Order $ 35.72

12 W10335430 Hinge, Door (left) Special Order $ 36.18

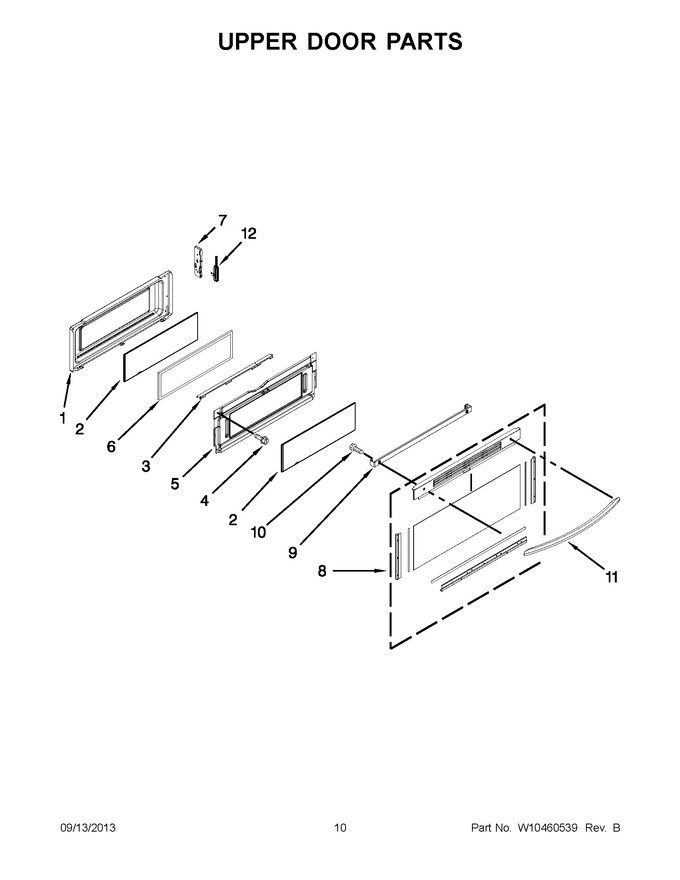

    View Diagram in Separate Window     Print Icon   Print Part List
