01 - Cover Sheet

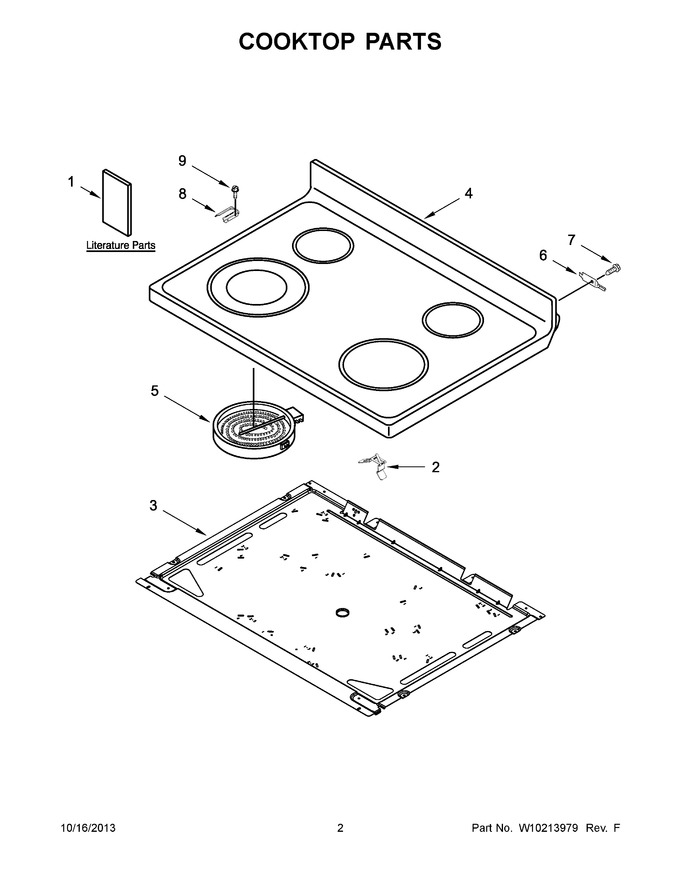

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10252706 | Instructions, Installation |
|
- | |||||
| 1 | W10196164 | Owners Manual |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W10170526 | Pan, Radiant Element |
|
$ 270.57 | |||||
| 4 | W10134279 | Cooktop (white) |
|
- | |||||
| 4 | W10134280 | Cooktop (black) |
|
- | |||||
| 5 | WPW10275049 | Element (2500/1200w) (right Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 5 | W11047722 | Element (2500w) (left Front) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 5 | W10823711 | Element (1200w) (right Rear And Left Rear) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 6 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: 3192830) |
|
Immediately | $ 28.54 | ||||
| 9 | 3148604 | Screw |
|
- |
