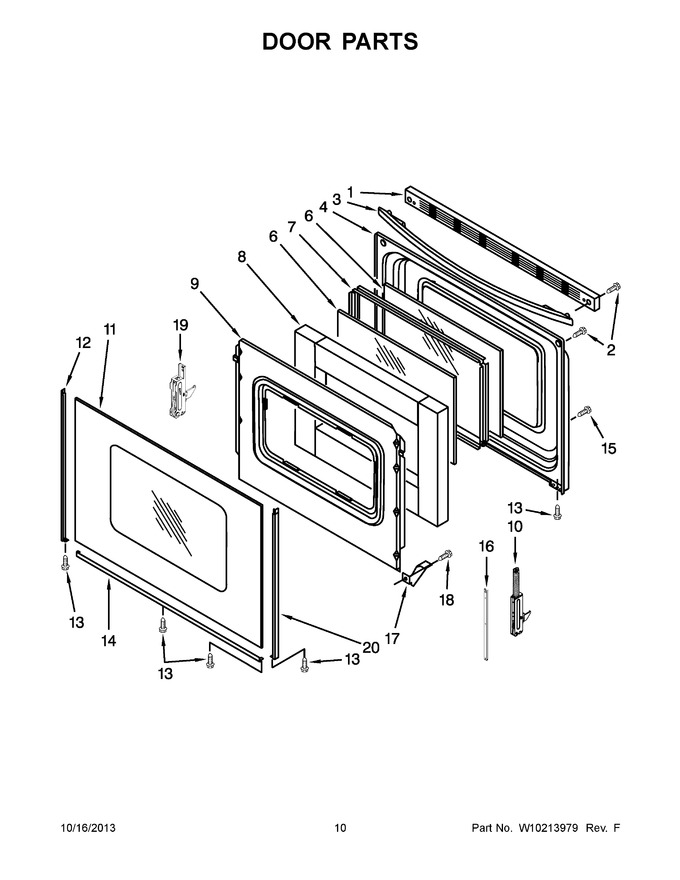

06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 2 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 3 | W10144889 | Handle, Door (black) |
|
$ 102.17 | |||||
| 3 | W10144890 | Handle, Door (stainless) |
|
$ 101.38 | |||||
| 3 | W10144888 | Handle, Door (white) |
|
$ 100.10 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 233.31 | |||||
| 10 | WPW10299224 | Hinge, Active (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 11 | WPW10118455 | Glass, Outer Door (black) (Replaces: W10118455) |
|
Immediately | $ 332.70 | ||||
| 11 | WPW10118454 | Glass, Outer Door (white) (Replaces: W10118454) |
|
$ 324.91 | |||||
| 12 | W10761018 | Trim, Side (black, Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 12 | WP8523172 | Trim, Side (white, Left Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 16 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 27.68 | ||||
| 17 | W10137382 | Clip, Glass |
|
Immediately | $ 48.42 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10299227 | Hinge, Passive (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 20 | W10761014 | Trim, Side (black, Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 20 | WP8523166 | Trim, Side (white, Right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 |
