View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

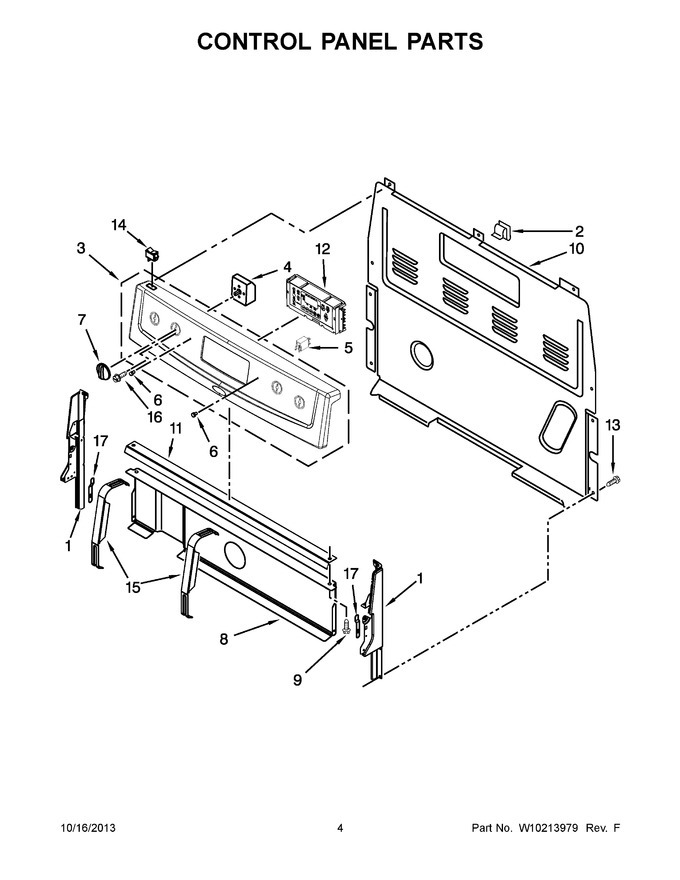

03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 3 | W10170021 | Panel, Control (stainless Steel) |
|
- | |||||
| 3 | W10170019 | Panel, Control (white) |
|
- | |||||
| 3 | W10170020 | Panel, Control (black) |
|
- | |||||
| 4 | WP3149400 | Switch, Infinite (right Front) (Replaces: W10295573) |
|
Immediately | $ 90.51 | ||||
| 4 | WP3149404 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10295576) |
|
Immediately | $ 61.45 | ||||
| 4 | WPW10149355 | Switch, Infinite (left Front) (Replaces: W10149355) |
|
Immediately | $ 204.91 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10119706 | Knob, Infinite (black) |
|
$ 52.90 | |||||
| 7 | W10119705 | Knob, Infinite (white) |
|
Immediately | $ 53.17 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 9 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket Console Mounting (Replaces: W10182322) |
|
$ 98.85 | |||||
| 12 | WPW10476368 | Control, Range (black) (Replaces: W10271722) |
|
$ 372.90 | |||||
| 12 | W10271721 | Control, Range (white) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 14 | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 93.95 | |||||
| 15 | W11230932 | Bracket, Mounting, Eoc (Replaces: W10138683) |
|
Immediately | $ 84.81 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | 3196200 | Clip, Spring |
|
$ 10.45 |
