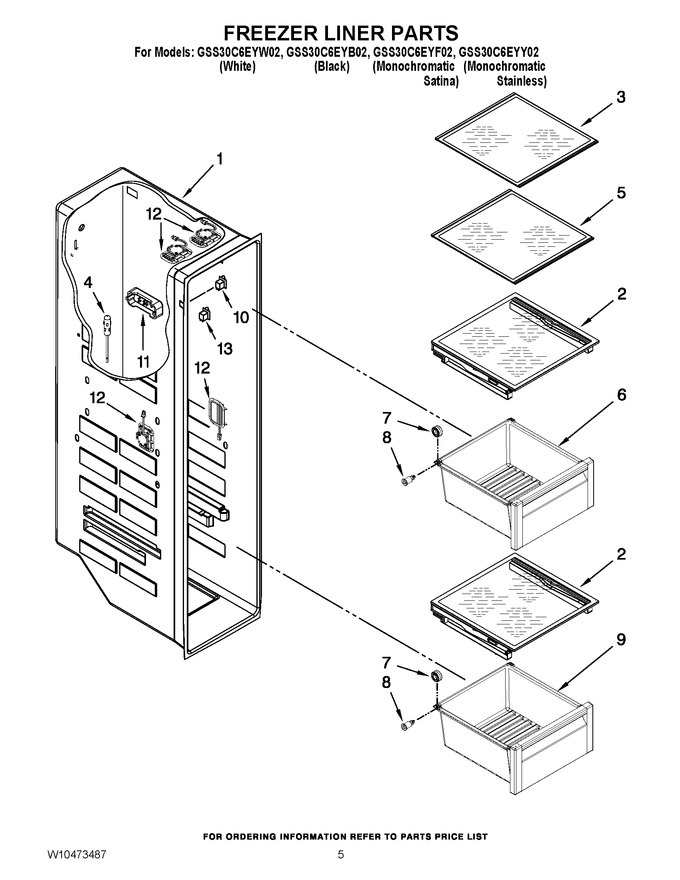

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10290894		Cover Assy		Appelez-nous	-
3	W10322802		Shelf, Glass Upper		Appelez-nous	-
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W10322804		Shelf, Glass Lower		Appelez-nous	-
6	WPW10322653		Pan, Freezer Upper Includes 7 & 8   (Replaces: W10322653)				$ 149.69
7	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
8	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
9	WPW10322649		Pan, Freezer Lower Includes 7 & 8   (Replaces: W10322649)				$ 148.25
10	W11123943		Switch, Rocker Arm Ice Maker   (Replaces: W10419177)				$ 36.66
11	W10425253		Cover, Thermistor   (Replaces: W10356632)		Appelez-nous	-
12	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 271.97
13	W11396033		Switch, Rocker Arm Light   (Replaces: 12466114)			Immediately	$ 37.30

    View Diagram in Separate Window       Print Part List
