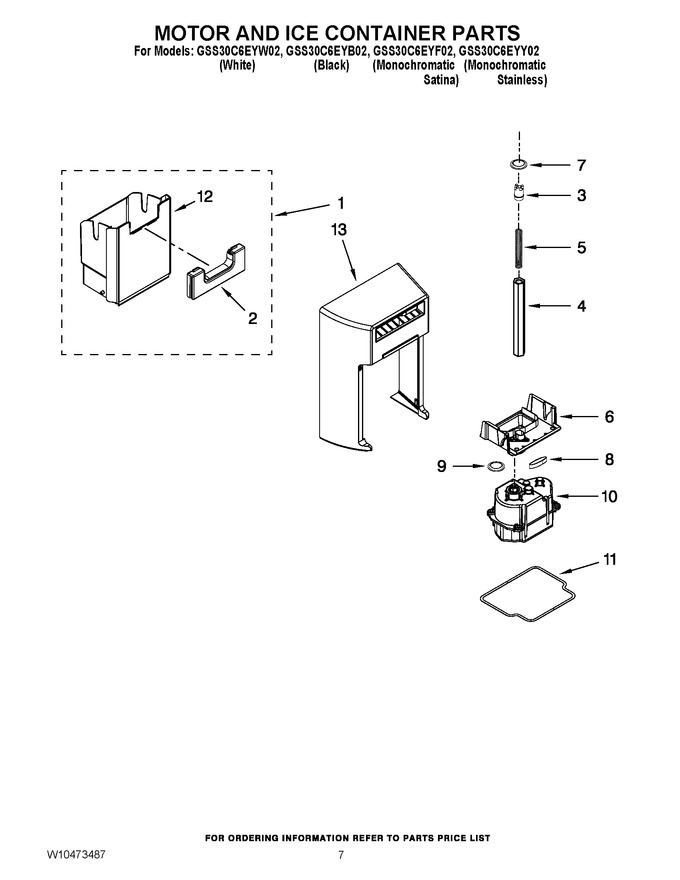

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11347840 | Ice Bin Assy (Replaces: W10353207) |
|
Immediately | $ 362.91 | ||||
| 2 | W11652042 | Latch, Assy (Replaces: W10258552) |
|
Immediately | $ 24.98 | ||||
| 3 | WP2220458 | Coupling, Lower (Replaces: 2220458) |
|
Immediately | $ 41.04 | ||||
| 4 | WPW10258544 | Drive Shaft (Replaces: W10258544) |
|
Immediately | $ 26.52 | ||||
| 5 | W10852956 | Spring, Coupling (Replaces: 2198607) |
|
Immediately | $ 21.40 | ||||
| 6 | W11573761 | Mounting Plate Assembly (Replaces: W10293211) |
|
Immediately | $ 62.92 | ||||
| 7 | WP2198628 | Seal (Replaces: 2198628) |
|
Immediately | $ 12.57 | ||||
| 8 | WPW10291905 | Gasket (Replaces: W10291905) |
|
$ 27.68 | |||||
| 9 | WP2212370 | Washer (Replaces: 2212370) |
|
$ 25.35 | |||||
| 10 | WP2323603 | Dispenser, Motor (Replaces: 2323603) |
|
$ 376.52 | |||||
| 11 | W10166854 | Gasket |
|
$ 26.69 | |||||
| 12 | W10286610 | Ice Bin |
|
$ 81.68 | |||||
| 13 | WPW10287594 | Cover, Container (Replaces: W10287594) |
|
$ 229.19 | |||||
| 100 | W11347840 | Ice Container (complete) (Replaces: W10353207) |
|
Immediately | $ 362.91 |
