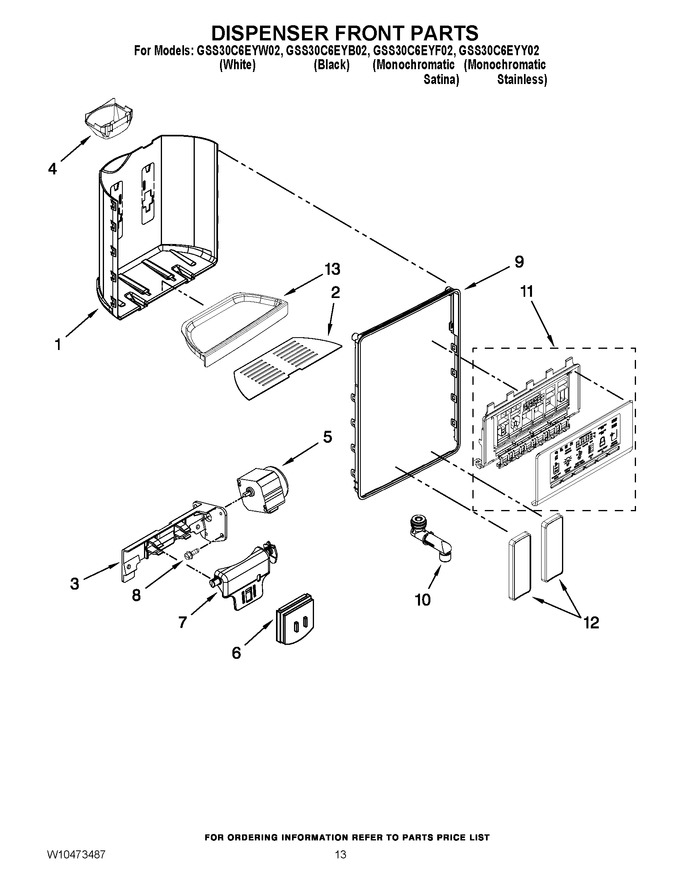

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276209		Grate, Drip Tray   (Replaces: W10276209)				$ 81.55
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Chute, Door   (Replaces: W10339578)				$ 23.94
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W10838126		Ice Door Assembly (includes Items 3, 5, 7, & 8)   (Replaces: W10353566)				$ 164.33
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276265		Trim Ring (white)				$ 63.74
9	W10448931		Trim Ring (chromium Frost)   (Replaces: W10254252)		Appelez-nous	-
10	WP2305235		Spigot   (Replaces: 2305235)				$ 147.07
11	W10418420		Electronic Control Assy (storm Cloud)		Appelez-nous	-
11	W10418419		Electronic Control Assy (silver Mirror)		Appelez-nous	-
12	W11812026		Pad, Ice & Water (black)   (Replaces: W10370577)				$ 63.03
12	W11624941		Pad, Ice & Water (midnight Grey)   (Replaces: W10370582)				$ 70.82
12	W10370583		Pad, Ice & Water (white)		Appelez-nous	-
13	W10276225		Tray, Housing (satina)				$ 74.06
13	W10254258		Tray, Housing (white)				$ 99.03
13	W10254259		Tray, Housing (black)				$ 71.51
