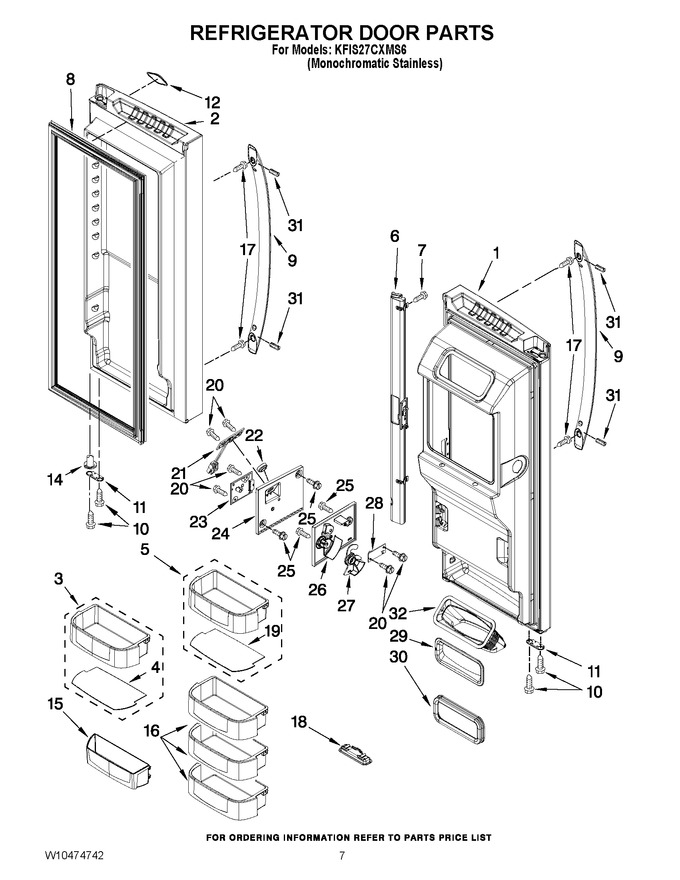

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13102620S | Door, Left (stainless) |
|
- | |||||
| 2 | 13102619S | Door, Right (stainless) |
|
- | |||||
| 3 | W10283472 | Bucket, Door Small (includes No.4) |
|
- | |||||
| 4 | W10283151 | Gripper, Gallon |
|
- | |||||
| 5 | W10283469 | Bucket, Door Gallon (includes No.4) Mullion, Door |
|
$ 39.21 | |||||
| 6 | WP12722815AP | Mullion, Door (apollo Grey) (Replaces: 12722815AP) |
|
$ 338.01 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830055 | Gasket, Door (stainless) (Replaces: W10163991) |
|
Immediately | $ 229.10 | ||||
| 9 | WPW10314517K | Handle, Door (stainless) (Replaces: W10314517) |
|
$ 243.37 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11703060 | Stop, Door (stainless) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 12 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 14 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 15 | W10280560 | Bucket, Small |
|
$ 35.50 | |||||
| 16 | W10255487 | Bucket, Door Gallon (rh) (without Gripper) |
|
$ 36.06 | |||||
| 17 | WPW10661886 | Screw, Handle (Replaces: W10303465) |
|
Immediately | $ 12.88 | ||||
| 18 | W10212141 | Latch, Ice Bin |
|
- | |||||
| 19 | W10283145 | Gripper |
|
- | |||||
| 20 | 2006254 | Screw (Replaces: 12993001) |
|
$ 13.79 | |||||
| 21 | WPW10305123 | Led, Ice Bin (Replaces: W10231571) |
|
$ 197.33 | |||||
| 22 | W10225288 | Lens, Ice Bin Led |
|
- | |||||
| 23 | W10180608 | Board, Receiver |
|
- | |||||
| 24 | W10251672 | Cover, Receiver |
|
$ 35.70 | |||||
| 25 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 26 | W10199834 | Cover, Emitter |
|
$ 37.43 | |||||
| 27 | W10211511 | Shutoff, Emitter |
|
$ 34.01 | |||||
| 28 | W10870822 | Board, Emitter (Replaces: W10180607) |
|
Immediately | $ 222.54 | ||||
| 29 | W10247763 | Seal, Ice Door |
|
$ 33.55 | |||||
| 30 | W10247668 | Gasket, Ice Chute |
|
$ 24.44 | |||||
| 31 | WP3400203 | Set Screw (Replaces: W10287054) |
|
Immediately | $ 5.04 | ||||
| 32 | W10213592 | Chute, Ice Door |
|
$ 28.23 |
