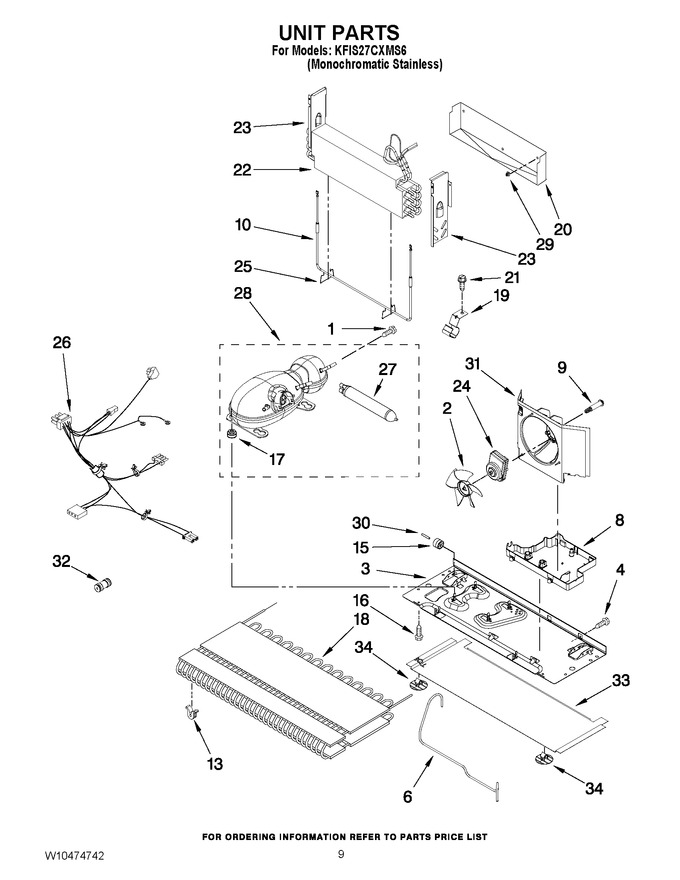

05 - Unit Parts


06 - Shelf Parts


07 - Motor And Ice Container Parts


08 - Icemaker Parts


09 - Dispenser Front Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10210985)				$ 110.55
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
6	W10409999		Tube, Discharge		Appelez-nous	-
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.03
9	W10829281		Screw, Shoulder   (Replaces: W10216919)				$ 13.28
10	WP12729123		Heater, Defrost   (Replaces: 12729123)				$ 191.44
13	WPW10137529		Grommet, Cond (4)   (Replaces: W10137529)				$ 8.76
15	12477102		Roller (2)			Immediately	$ 7.38
16	12992101		Screw		Appelez-nous	-
17	W10421440		Grommet (4)		Appelez-nous	-
18	WPW10346415		Condenser   (Replaces: W10346415)				$ 352.15
19	W10281329		Clip, Drier				$ 13.73
20	W11547653		Tray, Drip   (Replaces: W10292803)				$ 57.02
21	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
22	W11536253		Evaporator   (Replaces: W10313899)				$ 263.22
23	12963102SP		Dam (right Side)		Appelez-nous	-
23	12963002SP		Dam (left Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: W10239053)			Immediately	$ 143.68
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	W10271463		Harness, Unit With Power Cord				$ 277.79
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10467341		Compressor (part Not Available, Call 1-800-832-7174 For Assistance)		Appelez-nous	-
29	10623002		Clip, Evaporator				$ 12.11
30	67006434		Axle, Roller (2)   (Replaces: 12477202)			Immediately	$ 7.90
31	W11556315		Shroud   (Replaces: W10189184)				$ 83.64
32	WPW10334458		Connector-water   (Replaces: W10334458)				$ 22.67
33	W10367416		Extension-basepan		Appelez-nous	-
34	W10206339		Fastener, Basepan				$ 11.22
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	N/P		Refrigerant Charge (5.25 Ozs. (r-134a))		Appelez-nous	-
