SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts

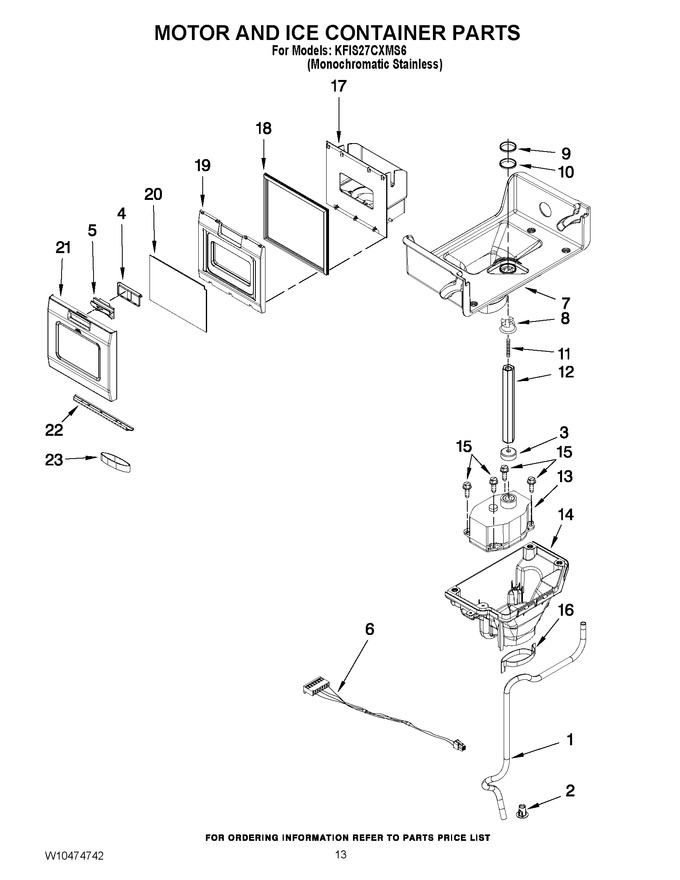

07 - Motor And Ice Container Parts


08 - Icemaker Parts


09 - Dispenser Front Parts


10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10245518		Tube, Drain				$ 32.98
2	W10562834		Clip, Drain Tube   (Replaces: W10245516)				$ 15.66
3	2323357		Grommet, Drive Shaft				$ 13.40
4	W10215692		Cover, Latch		Appelez-nous	-
5	W10292300		Spring, Latch		Appelez-nous	-
6	W10291014		Harness, Dispenser Motor		Appelez-nous	-
7	W10318539		Cover, Mounting Plate		Appelez-nous	-
8	WP2220458		Coupling, Bottom   (Replaces: 2220458)			Immediately	$ 41.04
9	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
10	WP2212370		Washer   (Replaces: 2212370)				$ 25.35
11	W10852956		Spring   (Replaces: 2198607)			Immediately	$ 21.40
12	W10258592		Shaft, Motor				$ 68.93
13	WP2323603		Motor, Dispenser   (Replaces: 2323603)				$ 376.52
14	W10245601		Housing, Auger Motor		Appelez-nous	-
15	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
16	W10247398		Gasket, Motor Box		Appelez-nous	-
17	W10267558		Container, Ice				$ 102.89
18	W10178224		Gasket, Ice Container				$ 205.79
19	W10213615		Eps, Ice Container				$ 32.62
20	W10218689		Window, Ice Container				$ 51.54
21	W10292299		Front, Ice Container				$ 66.92
22	W10248280		Hinge, Ice Bucket		Appelez-nous	-
23	W10166865		Gasket, Chute		Appelez-nous	-
100	W10353202		Container, Ice (complete)				$ 177.63
