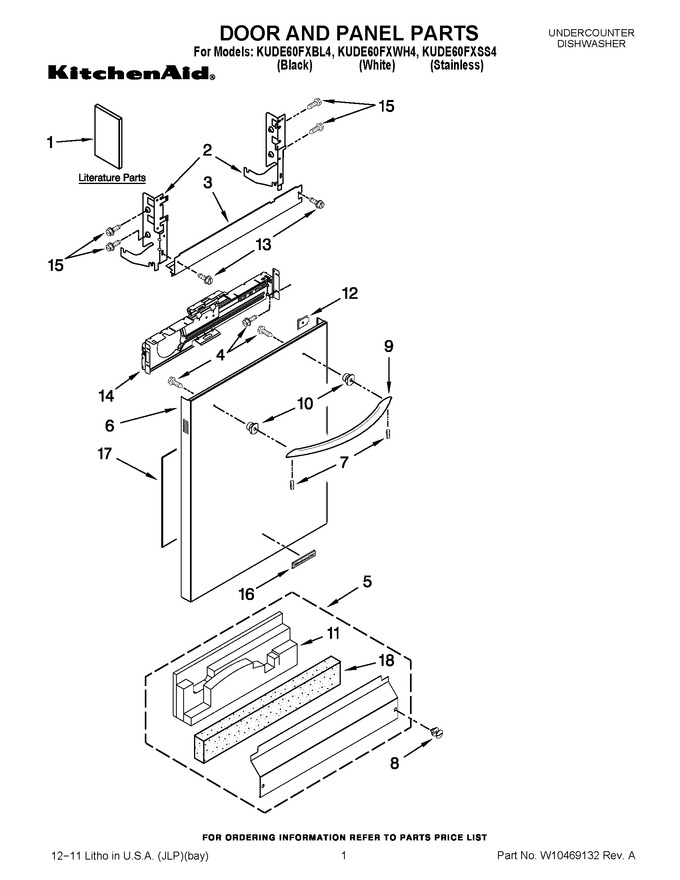

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10395350		Energy Guide		Appelez-nous	-
1	W10321874		Tech Sheet/english		Appelez-nous	-
1	W10321875		Tech Sheet/french		Appelez-nous	-
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10300929		Guide, Use & Care		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
5	WPW10526115		Access Panel (includes 11&18) (white)   (Replaces: W10368716)				$ 175.17
5	WPW10526114		Access Panel (includes 11&18) (black)   (Replaces: W10368715)			Immediately	$ 149.53
6	W10195872		Panel, Full Front (includes Items 4, 10, 12 & 16) (white)				$ 171.59
6	WPW10195870		Panel, Full Front (includes Items 4, 10, 12 & 16) (stainless)   (Replaces: W10195870)				$ 397.17
6	WPW10195873		Panel, Full Front (includes Items 4, 10, 12 & 16) (black)   (Replaces: W10195873)				$ 363.36
7	WPW10307614		Screw   (Replaces: W10307614)			Immediately	$ 7.55
8	WPW10503549		Fastener (white)   (Replaces: W10331793)			Immediately	$ 7.77
8	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 30.39
9	W10195738		Handle Assembly (includes Item 7) (stainless)		Appelez-nous	-
9	W10195736A		Handle Assembly (includes Item 7) (white)   (Replaces: W10195736)				$ 63.06
9	W10195735		Handle Assembly (includes Item 7) (black)		Appelez-nous	-
10	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
11	W10831329		Insulation & Barrier Assembly   (Replaces: W10350437)			Immediately	$ 43.30
12	W10319007		Light, Pipe				$ 72.00
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	W11116870		Bracket, Panel Control   (Replaces: W10194911)				$ 89.95
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	WPW10243392		Nameplate (black)   (Replaces: W10243392)				$ 73.70
16	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 58.31
16	WPW10243393		Nameplate (white)   (Replaces: W10243393)				$ 69.98
17	W11126003		Insulation Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
18	W10831329		Insulation Access Panel   (Replaces: W10385107)			Immediately	$ 43.30
