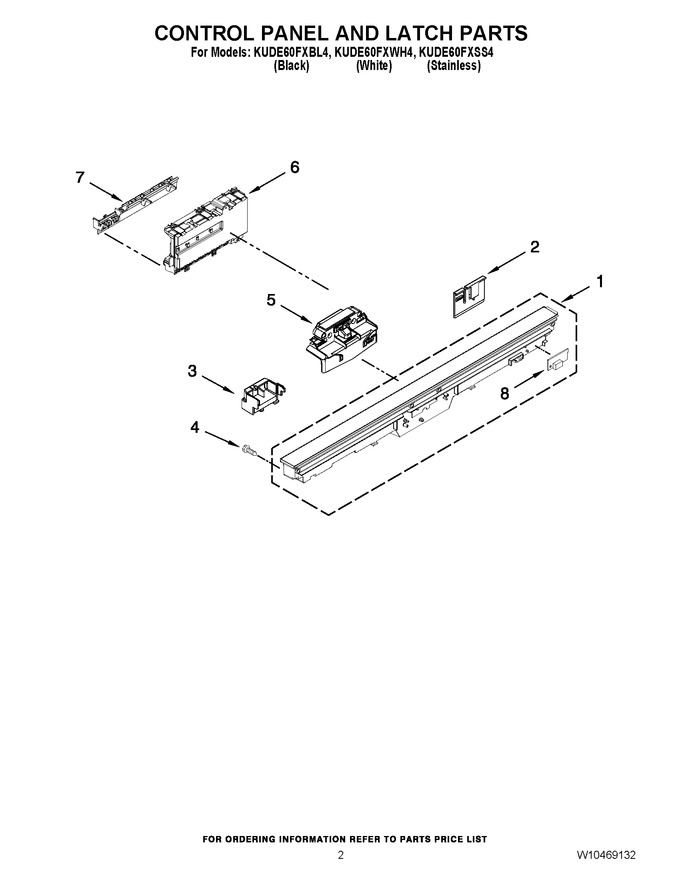

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10481113 | Console Assembly (black) (Replaces: W10195789) |
|
$ 388.65 | |||||
| 1 | WPW10481114 | Console Assembly (white) (Replaces: W10195792) |
|
$ 380.78 | |||||
| 1 | WPW10481112 | Console Assembly (stainless) (Replaces: W10195796) |
|
Immediately | $ 370.25 | ||||
| 2 | W11256107 | Clip, Control (Replaces: W10195237) |
|
$ 23.27 | |||||
| 3 | W10783730 | Connector, Box (Replaces: W10401190) |
|
$ 31.41 | |||||
| 4 | WPW10348409 | Screw (Replaces: W10348409) |
|
Immediately | $ 8.20 | ||||
| 5 | W10619006 | Latch Assembly (includes Switch) (Replaces: W10370003) |
|
Immediately | $ 39.09 | ||||
| 6 | W10473197 | Control, Electronic (Replaces: W10461375) |
|
Immediately | $ 283.77 | ||||
| 7 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 30.56 | |||||
| 8 | WPW10195836 | Light, Status (Replaces: W10195836) |
|
$ 79.33 |
