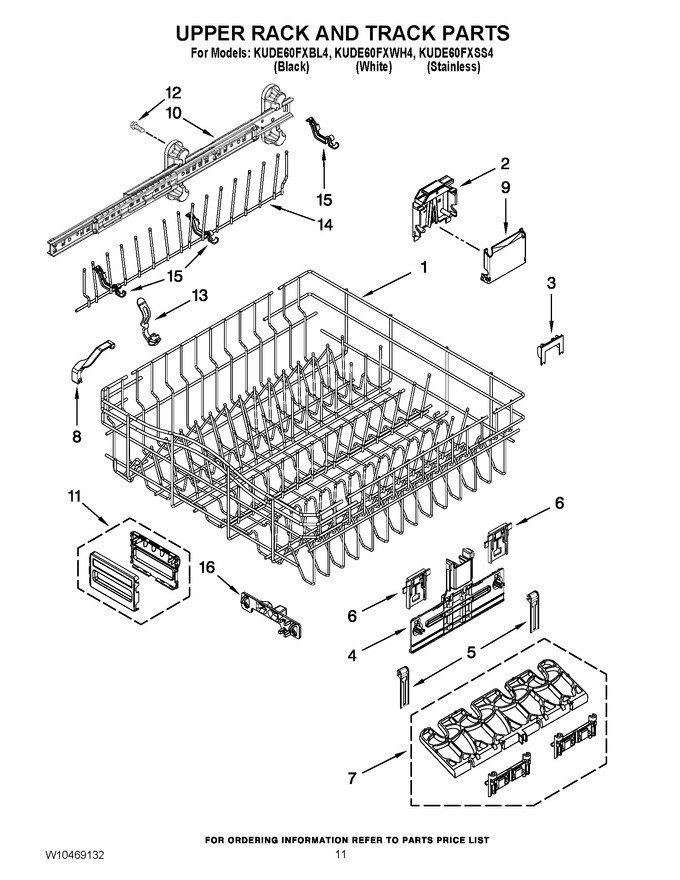

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10312791) |
|
Immediately | $ 179.58 | ||||
| 2 | WPW10588164 | Housing, Adjuster (left Hand) (Replaces: W10320664) |
|
Immediately | $ 16.84 | ||||
| 2 | WPW10588165 | Housing, Adjuster (right Hand) (Replaces: W10320665) |
|
Immediately | $ 54.81 | ||||
| 3 | WPW10250160 | Clip-lock Adjuster Arm (Replaces: W10250160) |
|
Immediately | $ 40.55 | ||||
| 4 | WPW10546503 | Adjuster Assembly (Replaces: W10306646) |
|
Immediately | $ 43.81 | ||||
| 5 | WPW10195839 | Strap, Tether Adjuster (Replaces: W10195839) |
|
Immediately | $ 30.81 | ||||
| 6 | WPW10195840 | Positioner, Adjuster (Replaces: W10195840) |
|
Immediately | $ 51.32 | ||||
| 7 | WPW10082649 | Cup, Shelf (Replaces: W10082649) |
|
Immediately | $ 109.45 | ||||
| 8 | WPW10267076 | Clip, Dispenser Guard (Replaces: W10267076) |
|
$ 31.56 | |||||
| 9 | WPW10250162 | Cover, Adjuster (Replaces: W10250162) |
|
Immediately | $ 7.61 | ||||
| 10 | W11259785 | Track, Assembly (rh, Lava Rail) (Replaces: W10311157) |
|
Immediately | $ 78.80 | ||||
| 10 | W11259786 | Track, Assembly (lh, Lava Rail) (Replaces: W10311156) |
|
Immediately | $ 84.94 | ||||
| 11 | W11110542 | Handle, Dishrack (Replaces: W10282826) |
|
$ 129.58 | |||||
| 12 | WPW10309090 | Screw Non-removable (Replaces: W10309090) |
|
Immediately | $ 76.86 | ||||
| 13 | WPW10077844 | Clip, No Flip (Replaces: W10077844) |
|
Immediately | $ 11.45 | ||||
| 14 | W10727426 | Tine Row (Replaces: 8562030) |
|
Immediately | $ 85.10 | ||||
| 15 | WPW10082853 | Clip, Pivot (Replaces: W10082853) |
|
Immediately | $ 5.40 | ||||
| 16 | WP8539102 | Positioner, Dual (Replaces: 8539102) |
|
$ 103.88 |
