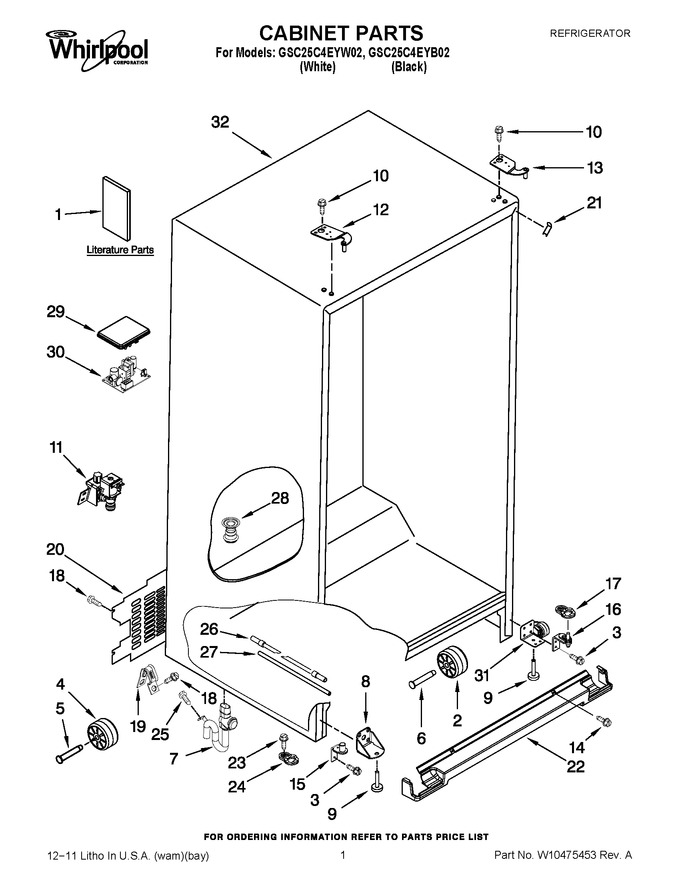

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168325 | Use & Care Guide |
|
- | |||||
| 1 | W10184982 | Energy Label |
|
- | |||||
| 1 | W10458465 | Service & Wiring Sheet |
|
- | |||||
| 2 | WPW10475495 | Front Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 8.40 | |||||
| 4 | 12477102 | Roller (rear) |
|
Immediately | $ 7.38 | ||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 6 | WPW10285005 | Rivet, Roller (Replaces: W10285005) |
|
$ 16.77 | |||||
| 7 | W11293072 | Drain Tube Assy (Replaces: W10379525) |
|
$ 34.60 | |||||
| 8 | W11266052 | Bracket, Foot (Replaces: W10257186) |
|
$ 66.31 | |||||
| 9 | WPW10141622 | Foot, Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 10 | WPW10308750 | Screw (Replaces: W10308750) |
|
$ 73.29 | |||||
| 11 | WPW10238100 | Valve, Inlet (Replaces: W10238100) |
|
Immediately | $ 210.55 | ||||
| 12 | W10901052 | Hinge, Top (fc) (black) (Replaces: W10249920) |
|
$ 76.64 | |||||
| 12 | W10901051 | Hinge, Top (fc) (white) (Replaces: W10247899) |
|
$ 74.11 | |||||
| 13 | W11568758 | Hinge, Top (rc) (black) (Replaces: W10249923) |
|
$ 25.62 | |||||
| 13 | W11573587 | Hinge, Top (rc) (white) (Replaces: W10247901) |
|
$ 24.93 | |||||
| 14 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 14 | WP98008545 | Screw (black) (Replaces: W10308487) |
|
$ 18.60 | |||||
| 15 | W11293373 | Bottom Hinge (fc) (white) (Replaces: W10249940) |
|
$ 70.77 | |||||
| 15 | W10249941 | Bottom Hinge (fc) (black) |
|
- | |||||
| 16 | W10500000 | Bottom Hinge (rc) (white) (Replaces: W10257188) |
|
$ 12.96 | |||||
| 16 | W10500001 | Bottom Hinge (rc) (black) (Replaces: W10257207) |
|
$ 84.37 | |||||
| 17 | W10500000 | Door Closer (rc) (white) (Replaces: W10247905) |
|
$ 12.96 | |||||
| 17 | W10500001 | Door Closer (rc) (black) (Replaces: W10257195) |
|
$ 84.37 | |||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 19 | 549193 | Clamp, Service Cord |
|
$ 14.06 | |||||
| 20 | W10257238 | Cover, Unit (Replaces: W10333887) |
|
$ 103.04 | |||||
| 21 | 12587703W | Filler, Wrapper (white) |
|
$ 22.90 | |||||
| 21 | 67003485 | Filler, Wrapper (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 22 | WPW10713158 | Grille (black) (Replaces: W10257232) |
|
$ 98.42 | |||||
| 22 | WPW10713160 | Grille (white) (Replaces: W10257231) |
|
$ 137.63 | |||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 11.41 | |||||
| 24 | W10770895 | Door Closer (fc) (black) (Replaces: W10257198) |
|
$ 15.78 | |||||
| 24 | W10876198 | Door Closer (fc) (white) (Replaces: W10247903) |
|
$ 12.63 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 26 | WPW10279882 | Tube, Filter Inlet (Replaces: W10277956) |
|
$ 114.23 | |||||
| 27 | WPW10279884 | Tube, Filter Outlet (Replaces: W10277957) |
|
$ 138.09 | |||||
| 28 | W10370680 | Drain Fitting |
|
$ 37.83 | |||||
| 29 | W11226688 | Cover (Replaces: 12957702) |
|
$ 85.16 | |||||
| 30 | W11088499 | Elec. Control (Replaces: W10446514) |
|
Immediately | $ 510.16 | ||||
| 31 | W11266052 | Roller Assy Rc (Replaces: W10155679) |
|
$ 66.31 | |||||
| 32 | N/P | Cabinet (not A Serviceable Part) |
|
- |
