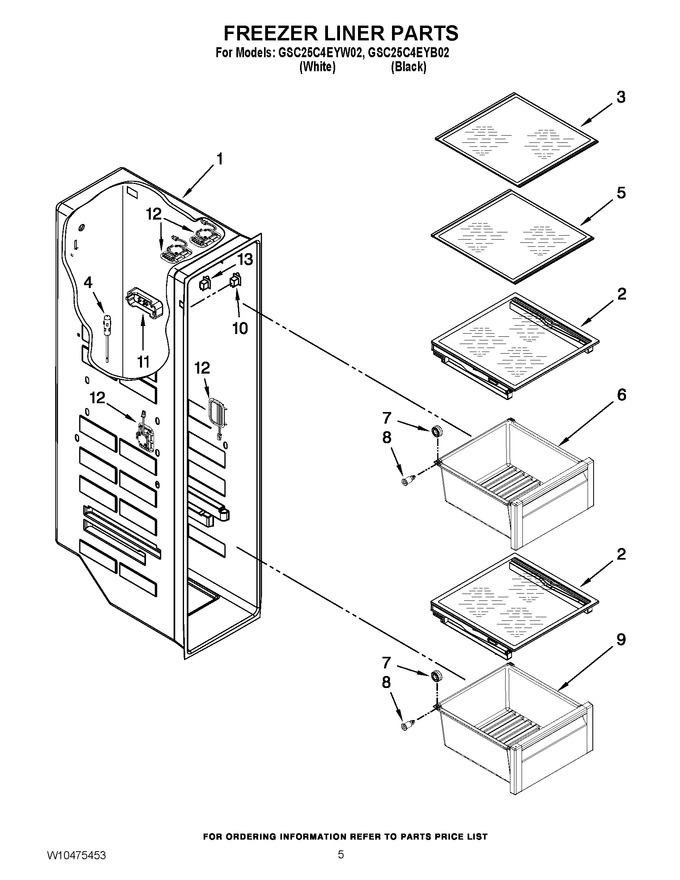

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10290890 | Cover Assy |
|
$ 269.33 | |||||
| 3 | WPW10393383 | Shelf, Glass Upper (Replaces: W10393383) |
|
$ 272.67 | |||||
| 4 | W11724692 | Thermistor (Replaces: W10280386) |
|
Immediately | $ 33.60 | ||||
| 5 | WPW10393382 | Shelf, Glass Lower (Replaces: W10393382) |
|
$ 259.31 | |||||
| 6 | W10322533 | Pan, Freezer Upper (includes 7 & 8) |
|
$ 137.51 | |||||
| 7 | W11164152 | Roller (Replaces: W10278139) |
|
Immediately | $ 15.74 | ||||
| 8 | WPW10257246 | Axle, Roller (Replaces: W10257246) |
|
$ 36.54 | |||||
| 9 | W10322536 | Pan, Freezer Lower (includes 7 & 8) |
|
$ 99.55 | |||||
| 10 | W11396033 | Switch, Rocker Arm Light (Replaces: 12466114) |
|
Immediately | $ 37.30 | ||||
| 11 | W10425253 | Cover, Thermistor |
|
- | |||||
| 12 | W11683241 | Led Light Assy (Replaces: W10279030) |
|
Immediately | $ 271.97 | ||||
| 13 | W11123943 | Switch, Rocker Arm Ice Maker (Replaces: W10419177) |
|
$ 36.66 |
