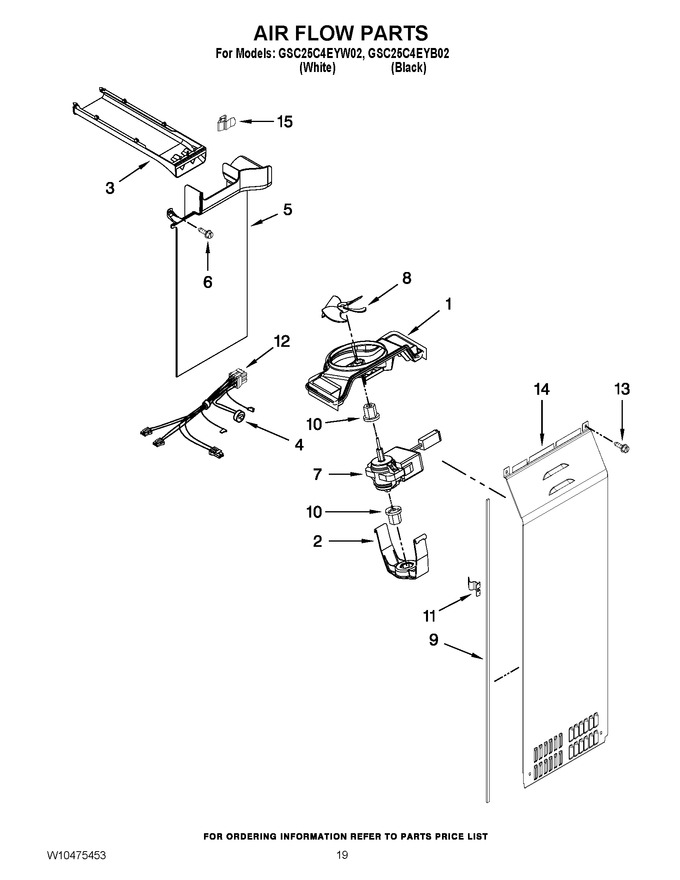

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11807265 | Fan Scroll (Replaces: W10251462) |
|
$ 30.70 | |||||
| 2 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 24.00 | |||||
| 3 | W10260388 | Air Duct, Upper |
|
$ 50.66 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: W10260437) |
|
Immediately | $ 50.77 | ||||
| 5 | W11746091 | Air Duct Freezer (Replaces: W10260384) |
|
- | |||||
| 6 | WP488488 | Screw (Replaces: 489290) |
|
$ 8.52 | |||||
| 7 | WP2315549 | Fan Motor (Replaces: 2315549) |
|
Immediately | $ 249.86 | ||||
| 8 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | W10240370 | Gasket, Evaporator Cover |
|
- | |||||
| 10 | WP2176759 | Fan Grommet (2) (Replaces: 2176759) |
|
$ 8.16 | |||||
| 11 | W11232019 | Clip, Mounting (Replaces: W10274578) |
|
Immediately | $ 11.39 | ||||
| 12 | W11566475 | Harness, Fan Evaporator (includes No.4) (Replaces: W10242409) |
|
$ 78.11 | |||||
| 13 | WP693995 | Screw, Evap Cover (Replaces: W10142292) |
|
Immediately | $ 7.55 | ||||
| 14 | WPW10388269 | Cover, Evaporator (includes No.9) (Replaces: W10388269) |
|
$ 242.39 | |||||
| 15 | W10331728 | Clip, Air Duct |
|
$ 81.19 |
