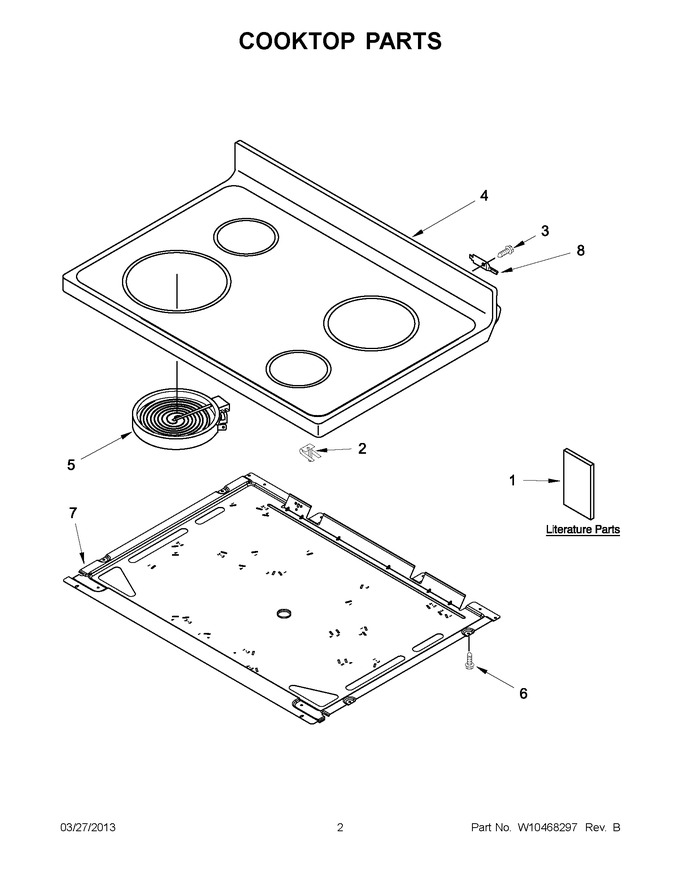

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10394384 | Owners Manual |
|
- | |||||
| 1 | W10403811 | Instructions, Installation |
|
- | |||||
| 1 | W10384447 | Tech Sheet (english) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10472027 | Cooktop (black) (Replaces: W10380659) |
|
$ 590.67 | |||||
| 4 | W10472025 | Cooktop (white) (Replaces: W10380658) |
|
$ 593.19 | |||||
| 5 | W11171119 | Element, Surface Element (1200w) (right Front & Left Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5 | WP8273993 | Element, Surface Element (1800w) (right Rear) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 5 | WPW10178016 | Element, Surface Element (3000w) (left Front) (Replaces: W10178016) |
|
Immediately | $ 422.95 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 8 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 |
