SELECT A DIAGRAM

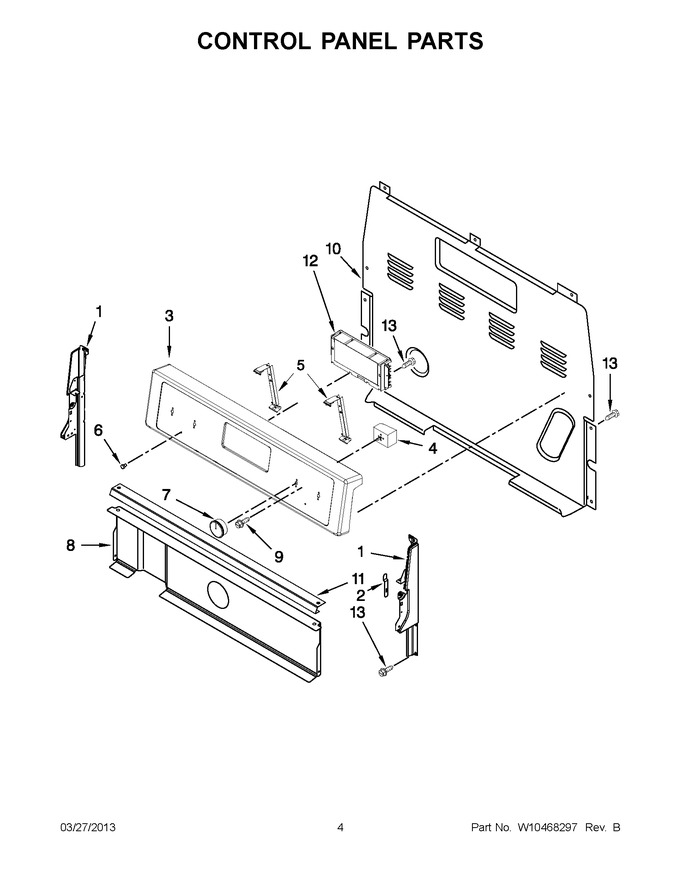

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer And Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
1	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 45.17
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 153.83
2	3196200		Clip, Spring				$ 10.45
3	W10339375		Panel, Backguard (stainless)				$ 93.64
3	W10370090		Panel, Backguard (black)				$ 145.30
3	W10370092		Panel, Backguard (white)		Appelez-nous	-
4	WPW10167742		Switch, Infinite (single, (3000w) (left Front))   (Replaces: W10167742)			Immediately	$ 118.20
4	5500-287		Switch, Infinite (right Front & Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148953)			Immediately	$ 52.39
5	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 84.81
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
7	WPW10490037		Knob (white)   (Replaces: W10490037)			Immediately	$ 7.55
7	WPW10490038		Knob (black)   (Replaces: W10490038)				$ 21.54
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W10813969		Control, Range (lcc190) (white)   (Replaces: W10348618)				$ 485.89
12	W10813969		Control, Range (lcc190) (black)   (Replaces: W10348617)				$ 485.89
12	W10424885		Control, Range (lcc190) (stainless)				$ 444.43
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72

    View Diagram in Separate Window       Print Part List
