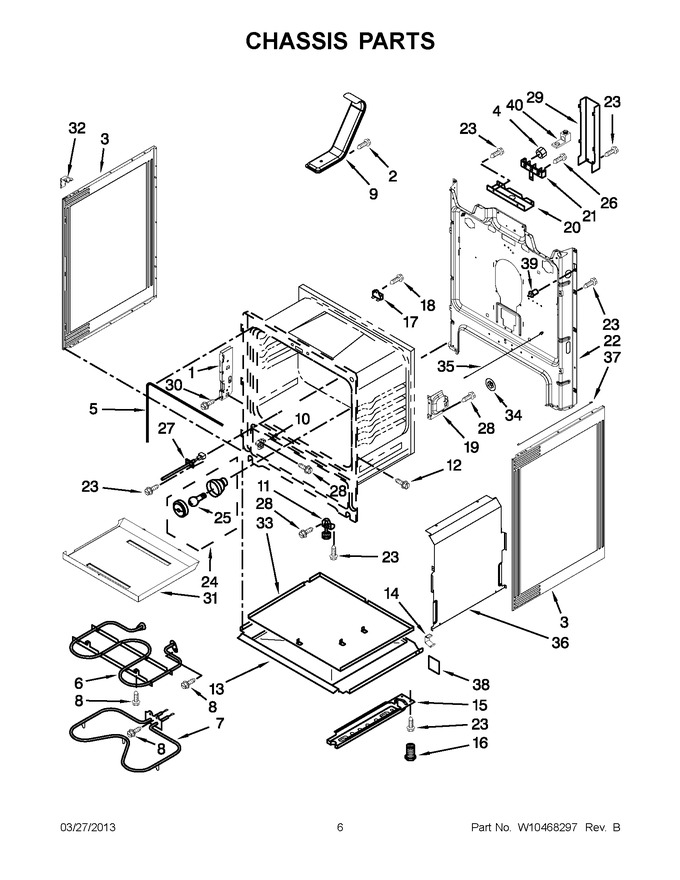

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 2 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10322770) |
|
Immediately | $ 178.50 | ||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 4 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 5 | W11542153 | Seal, Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 154.62 | ||||
| 7 | WP9755770 | Element, Bake (Replaces: 9755770) |
|
Immediately | $ 117.66 | ||||
| 8 | WP3196174 | Screw, Grounding (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 9 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 263.00 | ||||
| 10 | W10763667 | Glide, Drawer Front (Replaces: W10317898) |
|
Immediately | $ 107.68 | ||||
| 11 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 13 | W10134121 | Tray, Insulation |
|
$ 44.75 | |||||
| 14 | W10137382 | Clip, Glass |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Assembly, Base Rail Left (Replaces: W10390008) |
|
$ 62.66 | |||||
| 15 | W11818353 | Assembly, Base Rail Right (Replaces: W10390007) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 19 | W10404688 | Clip, Oven Support |
|
$ 17.69 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 22 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 24 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 87.01 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 29 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 31 | W10183712 | Tray, Hidden Bake |
|
$ 243.95 | |||||
| 32 | W10183541 | Clip, Spring Steel |
|
- | |||||
| 33 | W10134125 | Shield, Heat |
|
$ 159.37 | |||||
| 34 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 | ||||
| 35 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 36 | W10450380 | Retainer, Insulation |
|
- | |||||
| 37 | W10465685 | Rod, Insulation Retainer |
|
- | |||||
| 38 | W10646923 | Card, Insulator (Replaces: 9759689) |
|
$ 19.57 | |||||
| 39 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 40 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| NI | W11684918 | Insulation, Flue (Replaces: W10333344) |
|
Immediately | $ 35.48 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272611) |
|
$ 115.11 | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: 8273263) |
|
Immediately | $ 55.47 |
