01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts

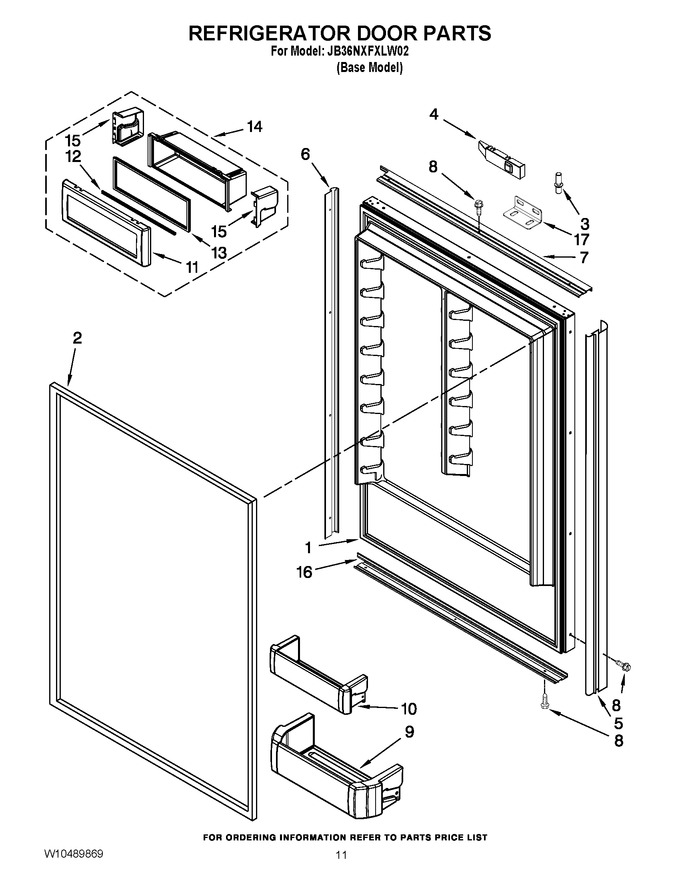

07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10202908		Door, Refrigerator (includes Item 2)		Appelez-nous	-
2	2302709		Gasket, Door   (Replaces: 2300184)				$ 312.67
3	W10234194		Pin-door				$ 16.55
4	W10197766		Insert, Door (bottom)				$ 16.44
4	W10197748		Insert, Door (top)				$ 17.93
5	W10188556		Trim Door		Appelez-nous	-
6	W10202602		Trim-door, Side (hinge Side)				$ 239.33
7	W10217464		Trim-door, Top		Appelez-nous	-
8	WPW10142233		Screw, 8-15 X 1/2   (Replaces: W10142233)				$ 8.39
9	W10323749		Shelf, Door(gallon)				$ 130.32
10	W11590561		Shelf, Door   (Replaces: W10323603)				$ 89.74
11	2309255		Door, Utility Bin				$ 43.26
12	2309256		Rail, Lid		Appelez-nous	-
13	2309257		Gasket, Utility Bin		Appelez-nous	-
14	W10323044		Bin, Utility				$ 126.27
15	WPW10323172		End Cap, Utility Bin (rh)   (Replaces: W10323172)				$ 8.19
15	WPW10323173		End Cap, Utility Bin (lh)   (Replaces: W10323173)				$ 8.19
16	W10202901		Trim-door, Bottom		Appelez-nous	-
17	W10199955		Bracket Panel Mounting				$ 89.41

    View Diagram in Separate Window       Print Part List
