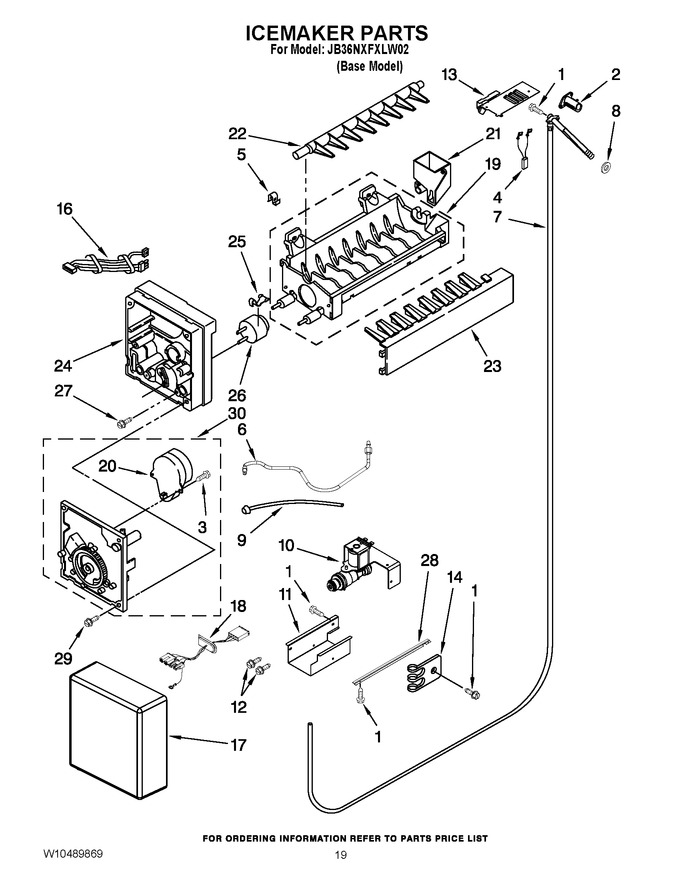

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10141596 | Screw |
|
$ 8.78 | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 196.74 | |||||
| 3 | 489136 | Screw |
|
$ 10.80 | |||||
| 4 | 2310108 | Jumper, Heater Fill Tube |
|
- | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 64.66 | |||||
| 7 | 2317847 | Tube Assembly, Water Inlet |
|
$ 86.35 | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
Immediately | $ 31.57 | ||||
| 10 | WP2307650 | Valve, Solenoid (Replaces: 2307650) |
|
Immediately | $ 203.52 | ||||
| 11 | W10129653 | Shield, Valve |
|
- | |||||
| 12 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.83 | ||||
| 13 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 85.08 | |||||
| 14 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 11.18 | |||||
| 16 | 2310136 | Wire Harness, Icemaker |
|
$ 178.69 | |||||
| 17 | WPW10289690 | Cover (Replaces: W10289690) |
|
Immediately | $ 8.40 | ||||
| 18 | W10279393 | Wire Assembly (water Valve) |
|
$ 149.59 | |||||
| 19 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 20 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 141.64 | ||||
| 21 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 21.57 | |||||
| 22 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 23 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 94.69 | |||||
| 24 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 25 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 26 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 27 | 8533917 | Screw |
|
$ 13.37 | |||||
| 28 | 2320559 | Support, Valve |
|
$ 88.79 | |||||
| 29 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 30 | 8201515 | Module Assembly (includes 3 & 20) (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 100 | WPW10277450 | Complete Icemaker Assembly (Replaces: W10277450) |
|
Immediately | $ 268.05 | ||||
| NI | W10355010 | Affresh Kitchen Appliance Cleaner |
|
- | |||||
| NI | W10355016 | Affresh Stainless Steel Cleaner |
|
- | |||||
| NI | W10355049 | Affresh Stainless Steel Wipes |
|
$ 7.91 | |||||
| NI | REFDEODOR | Deodorizer Pack |
|
- | |||||
| NI | W11175806 | Install Kit (Replaces: W10249830) |
|
$ 266.30 | |||||
| NI | W10234156 | Block-install |
|
$ 15.97 | |||||
| NI | W10222279 | Template, Wood Panels (bm) |
|
- | |||||
| NI | W10222283 | Template, Wood Panels (grille) |
|
$ 51.27 |
