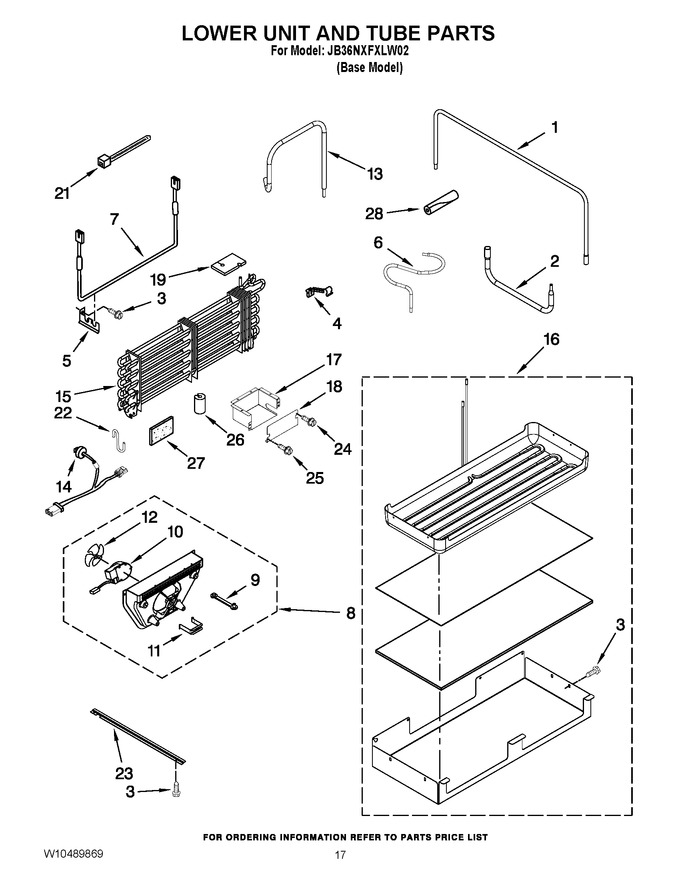

10 - Lower Unit And Tube Parts


11 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309072		Tube, Transition (condenser)		Appelez-nous	-
2	W10388653		Tube, Transition (drier/restrictor)			Immediately	$ 40.48
3	W10141596		Screw				$ 9.22
4	2307944		Clip, Heater		Appelez-nous	-
5	2307945		Bracket, Mounting		Appelez-nous	-
6	W10431124		Tube, Suction Oil Trap				$ 32.73
7	WP2268393		Heater, Defrost   (Replaces: 2268393)				$ 168.19
8	2306178		Scroll Assembly		Appelez-nous	-
9	W11669856		Grommet, Motor   (Replaces: W10449920)			Immediately	$ 15.93
10	2259385		Motor, Fan				$ 84.74
11	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 159.27
12	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
13	W10404239		Tube, Discharge Assembly		Appelez-nous	-
14	W10139165		Defrost Bi-metal				$ 85.95
15	WPW10195923		Evaporator   (Replaces: W10195923)			Immediately	$ 390.15
16	W11623101		Drain Pan Asy   (Replaces: W10281063)			Immediately	$ 394.02
17	W10316077		Cover, Box		Appelez-nous	-
18	W11756952		Cover, Wiring   (Replaces: W10321048)		Appelez-nous	-
19	2306180		Block, Evaporator		Appelez-nous	-
21	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 8.30
22	2317920		Clip, Heater Defrost		Appelez-nous	-
23	2320554		Bracket, Drain Pan		Appelez-nous	-
24	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
25	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
26	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 8.09
27	W10267707		Insulation, Sound		Appelez-nous	-
28	W10405530		Sleeve		Appelez-nous	-
