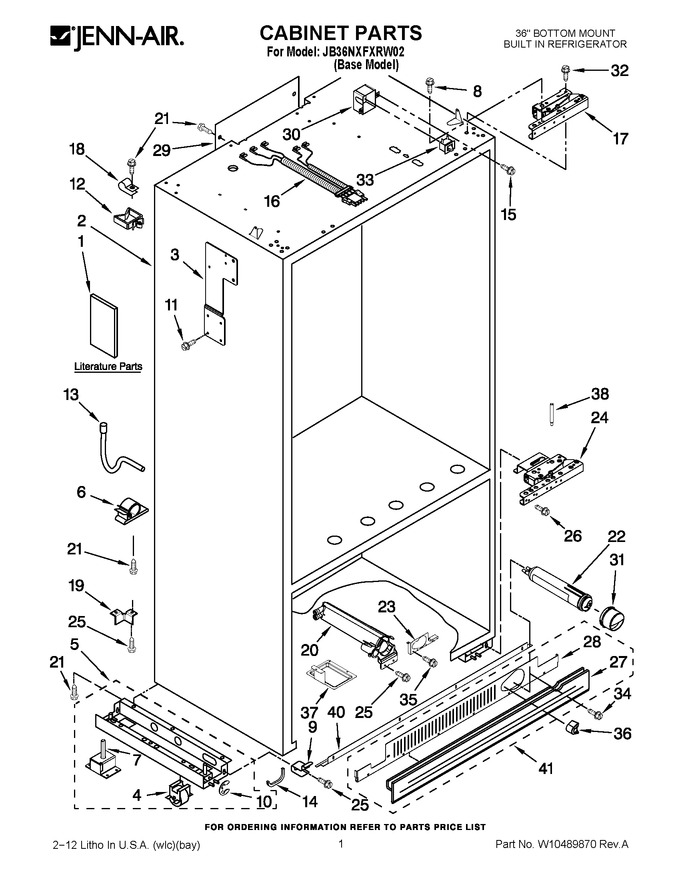

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10303991 | Use & Care Guide |
|
- | |||||
| 1 | W10246774 | Energy Guide |
|
- | |||||
| 1 | W10234136 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10234145 | Main Control Service Sheet |
|
- | |||||
| 1 | 2317840 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10379137 | Installation Instructions |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | W10188499 | Bracket, Grille (lh) |
|
$ 66.70 | |||||
| 3 | W10188500 | Bracket, Grille (rh) |
|
$ 115.89 | |||||
| 4 | WPW10138054 | Roller, Front & Rear (Replaces: W10138054) |
|
$ 45.34 | |||||
| 5 | W10860448 | Support, Leveler Assembly (refrigerator Side) (Replaces: W10138423) |
|
Immediately | $ 383.00 | ||||
| 5 | W10860229 | Support, Leveler Assembly (freezer Side) (Replaces: W10279275) |
|
$ 381.83 | |||||
| 6 | 2004514 | Clip, Conduit |
|
- | |||||
| 7 | 2005032 | Leveler Assy |
|
Immediately | $ 200.07 | ||||
| 8 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 14.78 | ||||
| 9 | W10839844 | Mounting Bracket, Grill (Replaces: 2307640) |
|
$ 43.26 | |||||
| 10 | 2006841 | Ring, Retainer |
|
$ 92.66 | |||||
| 11 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 12 | W10129069 | Clip |
|
- | |||||
| 13 | 2314064 | Tube, Drain |
|
$ 93.88 | |||||
| 14 | 2307584 | Grommet Crossover Tube |
|
$ 23.40 | |||||
| 15 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 16 | W10209506 | Wire Assembly, Light Switch |
|
- | |||||
| 17 | W10167397 | Hinge, Door Refrigerator Top |
|
$ 557.77 | |||||
| 18 | W10331955 | Clamp, Tube |
|
- | |||||
| 19 | 2006617 | Bracket, Support Door |
|
- | |||||
| 20 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 171.96 | ||||
| 21 | W10141596 | Screw |
|
$ 9.22 | |||||
| 22 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 23 | W11755873 | Bracket, Mounting (filter) (Replaces: W10348782) |
|
$ 80.33 | |||||
| 24 | W10136731 | Hinge, Bottom Refrigerator Door |
|
$ 516.30 | |||||
| 25 | WP489464 | Screw 8-18 X 1/2 (Replaces: W10001250) |
|
Immediately | $ 8.38 | ||||
| 26 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.93 | |||||
| 27 | WPW10188547 | Skirt, Grille (bottom) (Replaces: W10188547) |
|
Immediately | $ 165.28 | ||||
| 28 | W11739145 | Grille Base, Front (Replaces: W10189196) |
|
Immediately | $ 209.08 | ||||
| 29 | W10426957 | Cover, Air Duct |
|
- | |||||
| 30 | W10167341 | Cover, Switch |
|
$ 77.09 | |||||
| 31 | WP2260518B | Cap, Water Filter (Replaces: 2260518B) |
|
Immediately | $ 28.26 | ||||
| 32 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 14.78 | ||||
| 33 | W11384469 | Switch, Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 34 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10005050) |
|
Immediately | $ 8.38 | ||||
| 35 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 36 | WP2260503B | Button, Filter (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 37 | 2318189 | Tray, Drip Filter |
|
$ 148.73 | |||||
| 38 | W10234202 | Pin-stop, Door |
|
$ 91.73 | |||||
| 40 | W10250961 | Grille Trim Top |
|
- | |||||
| 41 | W10188501 | Grille Kit Assy (includes 27 & 28) |
|
- |
