Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10188580 Cover, Unit Special Order $ 274.17

2 2256466 Back Panel Special Order $ 327.22

3 W10272180 Front, Unit Cover Special Order $ 142.97

4 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

5 2215910 Grommet Special Order $ 94.32

6 W10251186 Air Divider Top Grille Appelez-nous -
7 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40


    View Diagram in Separate Window     Print Icon   Print Part List

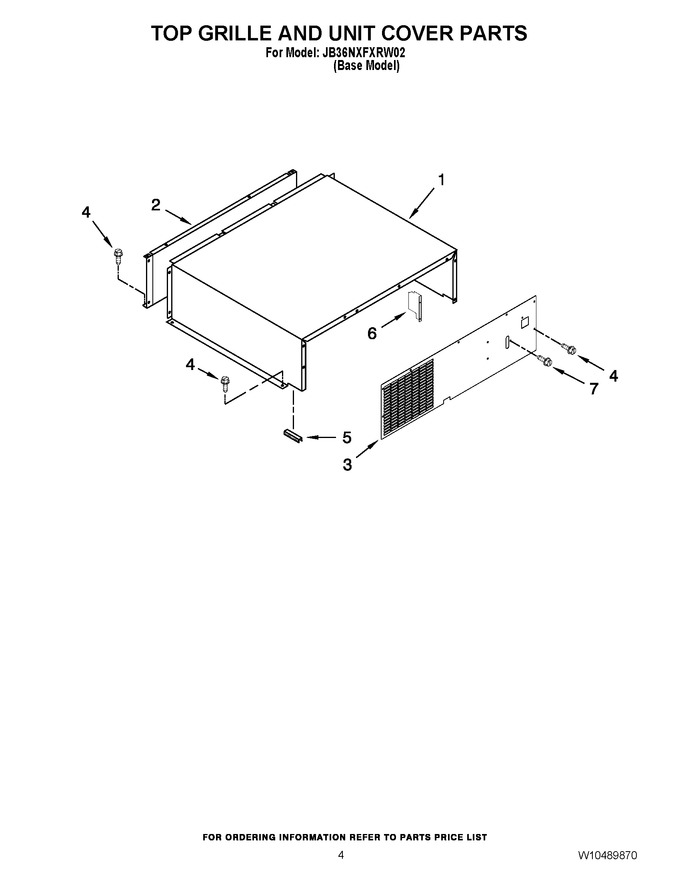

Diagram for JB36NXFXRW02
