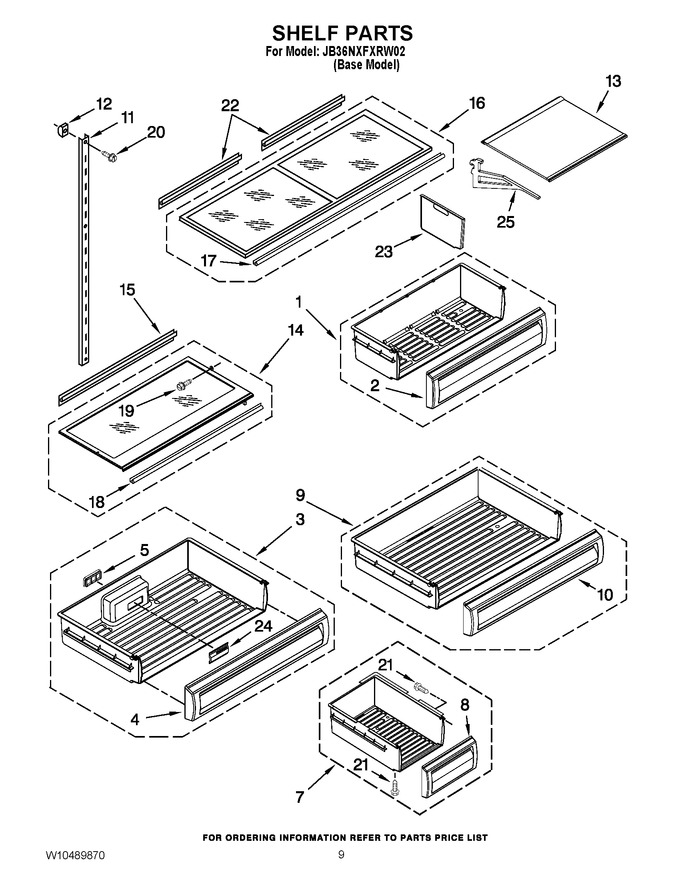

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2256375		Crisper Pan Assembly (includes No. 2)   (Replaces: W10407629)				$ 397.25
2	2256374		Front, Crisper Pan		Appelez-nous	-
3	W10407636		Deli Pan Assembly (incl. No.4, 5 & 24)		Appelez-nous	-
4	2257548		Front, Deli Pan				$ 165.49
5	2307810		Duct Deli Pan		Appelez-nous	-
7	2306174		Ice Pan Assembly (includes No. 8)				$ 147.41
8	2306175		Front, Ice Pan				$ 95.96
9	2327512		Freezer Pan Assembly (includes No. 10)		Appelez-nous	-
10	2268383		Front, Freezer Pan		Appelez-nous	-
11	W10213472		Ladder, Shelf		Appelez-nous	-
12	W10246602		Support, Ladder		Appelez-nous	-
13	WPW10198700		Shelf   (Replaces: W10198700)				$ 312.70
14	W10203635		Cover, Deli Bin				$ 840.79
15	2309399		Gasket, Rear		Appelez-nous	-
16	W10183749		Cover, Crisper		Appelez-nous	-
17	2309397		Gasket, Front (crisper Cover)		Appelez-nous	-
18	2309397		Gasket, Front (deli Cover)		Appelez-nous	-
19	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
20	2006475		Screw		Appelez-nous	-
21	WP488787		Screw 8-18 X 1/2   (Replaces: 488886)				$ 11.26
22	2309398		Gasket, Rear		Appelez-nous	-
23	2256474		Divider, (crisper Pan)				$ 87.99
24	2317939		Air Deflector		Appelez-nous	-
25	W10187549		Sidearm-shelf				$ 299.12
