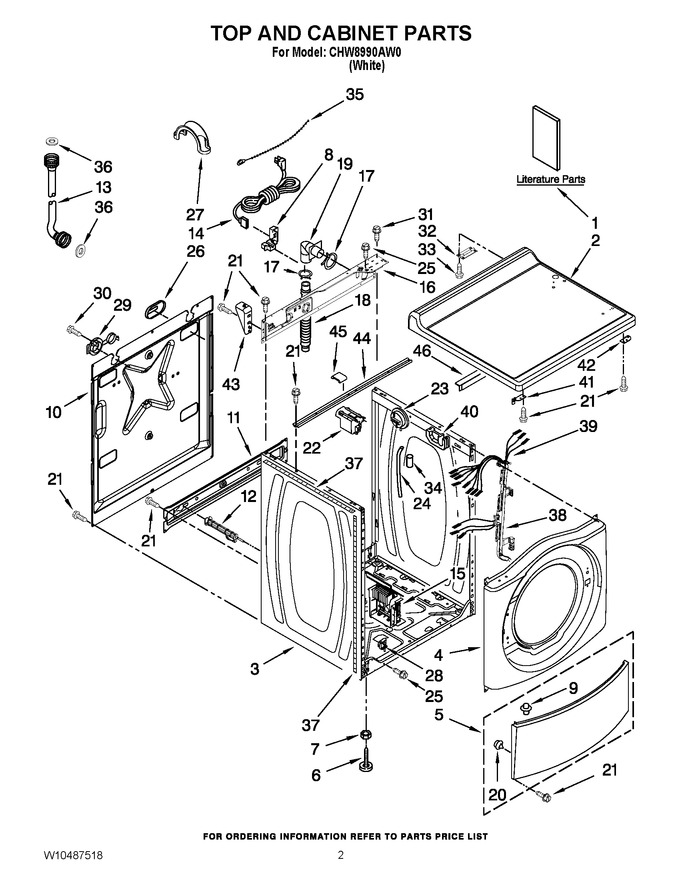

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10341085 | Installation Instructions |
|
- | |||||
| 1 | W10487518 | Repair Parts List |
|
- | |||||
| 1 | W10311071 | Tech Sheet (french) |
|
- | |||||
| 1 | W10311069 | Tech Sheet (english) |
|
- | |||||
| 2 | WPW10137411 | Top (Replaces: W10137411) |
|
$ 410.00 | |||||
| 3 | W10208642 | Cabinet |
|
- | |||||
| 4 | WPW10306505 | Panel, Front (Replaces: W10306505) |
|
$ 374.67 | |||||
| 5 | WP8540664 | Toe Panel (Replaces: 8540813) |
|
$ 377.11 | |||||
| 6 | W10862938 | Foot, Leveling (Replaces: W10245373) |
|
Immediately | $ 13.22 | ||||
| 7 | WP3359452 | Nut, Lock (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 8 | 8182635 | Strain Relief, Power Cord (Replaces: W10110676) |
|
$ 17.56 | |||||
| 9 | 8518891 | Rivet |
|
$ 14.07 | |||||
| 10 | W10258342 | Panel, Rear |
|
- | |||||
| 11 | W10189659 | Brace, Transport |
|
$ 45.35 | |||||
| 12 | W10763471 | Bolt, Shipping (Replaces: W10251449) |
|
$ 42.13 | |||||
| 13 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 13 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 24.09 | ||||
| 14 | W11764783 | Cord, Power (Replaces: W10205500) |
|
$ 43.66 | |||||
| 15 | WPW10384849 | Motor Control Unit (Replaces: W10384849) |
|
Immediately | $ 367.93 | ||||
| 16 | W10244560 | Brace, Rear |
|
$ 94.10 | |||||
| 17 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 18 | WPW10106460 | Hose, Drain-outer (Replaces: W10106460) |
|
$ 28.68 | |||||
| 19 | W11757170 | Connector, Hose Outlet (Replaces: W10003260) |
|
Immediately | $ 6.71 | ||||
| 20 | 238614 | Bumper |
|
$ 84.79 | |||||
| 21 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 11.49 | ||||
| 22 | WPW10367632 | Filter, Interference (Replaces: W10339736) |
|
$ 128.33 | |||||
| 23 | W10292407 | Switch, Pressure |
|
$ 38.65 | |||||
| 24 | W11252474 | Hose, Pressure Switch (Replaces: 8540294) |
|
Immediately | $ 35.23 | ||||
| 25 | 8540479 | Screw, Grounding |
|
$ 9.22 | |||||
| 26 | WP8540268 | Cover, Transport (Replaces: 8540268) |
|
$ 7.30 | |||||
| 27 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 28 | WPW10085220 | Microswitch (Replaces: W10085220) |
|
$ 34.91 | |||||
| 29 | W11116978 | Sleeve, Cord Support (Replaces: 8540728) |
|
$ 23.94 | |||||
| 30 | 8182201 | Screw, 3 X 8 Mm (Replaces: 8540727) |
|
$ 14.08 | |||||
| 31 | 8540329 | Screw |
|
- | |||||
| 32 | WP8565018 | Hinge & Pin Assembly (Replaces: 8565018) |
|
$ 115.34 | |||||
| 33 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 34 | W11751592 | Sleeve, Pressure Switch Hose (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 35 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 36 | WP16123 | Washer, Water Inlet Hose 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 8.16 | |||||
| 37 | WP8318396A | Seal, Foam-iec (Replaces: 8318396) |
|
$ 39.71 | |||||
| 38 | W10200785 | Harness Channel, Side Front (Replaces: W10168546) |
|
$ 9.54 | |||||
| 39 | WPW10298334 | Harness, Wiring (lower Main) Includes Item 38 (Replaces: W10298334) |
|
$ 116.14 | |||||
| 40 | 8540643 | Bracket, Spring |
|
$ 12.86 | |||||
| 41 | W10137445 | Bracket, Left Top Panel |
|
- | |||||
| 42 | W10137444 | Bracket, Right Top Panel |
|
- | |||||
| 43 | W10137398 | Stop, Top Panel |
|
- | |||||
| 44 | WP8540721 | Brace, Top (Replaces: 8540721) |
|
$ 52.26 | |||||
| 45 | WP8283273 | Damper, Brace (Replaces: 8283273) |
|
$ 28.40 | |||||
| 46 | WPW10342663 | Angle, Support Top (Replaces: W10342663) |
|
$ 149.58 | |||||
| NI | 8540205 | Door Lock - Power |
|
- | |||||
| NI | W10253054 | Ccu To Mcu-serial Communication (3 Pole) |
|
$ 48.70 | |||||
| NI | W10253050 | Ccu To Mcu-power (2 Pole) |
|
$ 83.91 | |||||
| NI | N/P | The Following Cable Sets: (not Illustrated) |
|
- |
