01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Meter Case Parts


05 - Pump And Motor Parts


06 - Dispenser Parts


07 - Tub And Basket Parts


08 - Optional Parts (not Included)

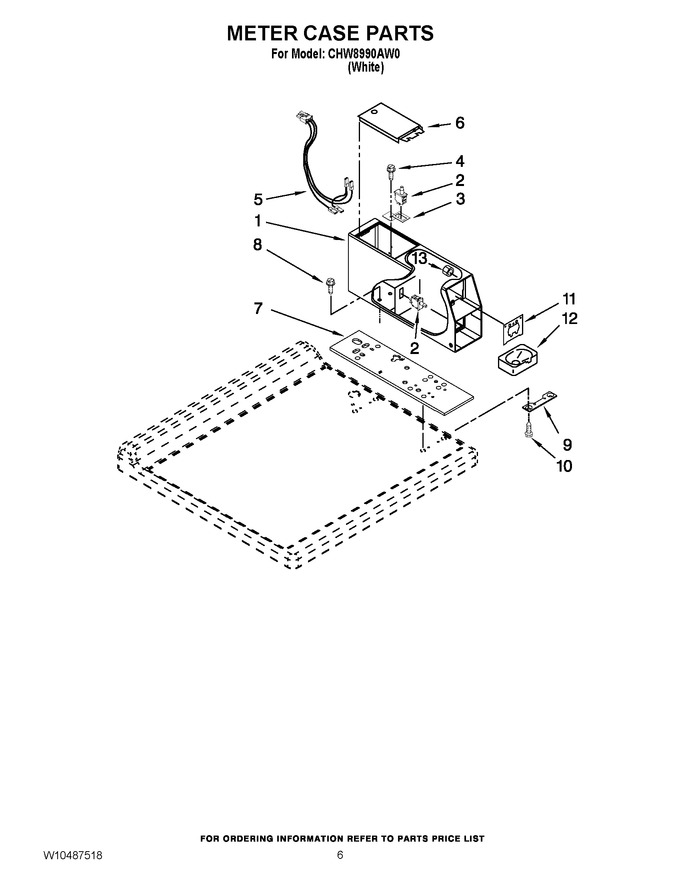

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10171132		Meter Case   (Replaces: W10171132)				$ 247.32
2	WPW10131838		Switch, Vault & Service Door   (Replaces: W10131838)				$ 25.11
3	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
4	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 8.03
5	W11096090		Wire Harness, Sensor Switch   (Replaces: W10211244)				$ 13.40
6	W11283272		Service Door Assembly   (Replaces: 3351136)				$ 111.17
7	W10137448		Cushion, Meter Case		Appelez-nous	-
8	W11715721		Screw, 5/16-24 X 1   (Replaces: 3349065)				$ 7.48
9	3347825		Plate, Meter Case Mounting		Appelez-nous	-
10	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
NI	WP385421		Funnel, Coin   (Replaces: 385421)			Immediately	$ 77.91
NI	279950		Plate, Chute Adapter Assembly (includes Items 12 & 13)   (Replaces: 3954761)			Immediately	$ 28.89
NI	WP3400029		Nut, Adapter Plate   (Replaces: 3400029)			Immediately	$ 8.19
